Garmin GPSmap 60CSx Repair Guide
Quick answer: Start with the troubleshooting check to rule out batteries, settings and GPS reception. Then jump to the matching repair: screen problems, sticky keypad buttons, a failed gasket (moisture), or corroded battery terminals (power loss).
The Garmin GPSmap 60CSx is a rugged, long-lived handheld GPS with a color display, high-sensitivity receiver and microSD slot. Years of outdoor use cause predictable wear: leaking batteries, worn rubber keys, tired seals and scratched lenses. These guides cover each problem with clear symptoms, causes and fixes.
Quick Check Lists
| Symptom | Likely cause | Read |
|---|---|---|

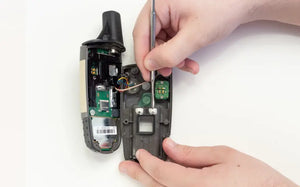

| Won't power on, shuts off | Batteries, corroded terminals | Troubleshooting Check / Battery Terminal |

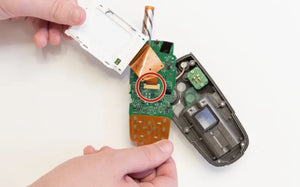

| Dim, cracked or blank display | Backlight, lens, display module | Screen |

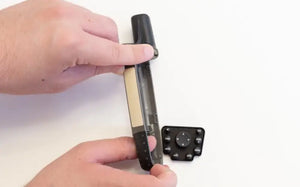

| Sticky or dead buttons | Dirt, worn keypad | Keypad Buttons |

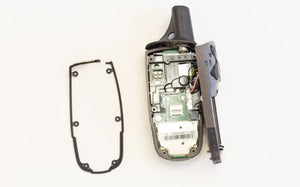

| Fog or moisture inside | Failed gasket | Gasket |
Before You Start
- Remove batteries and the microSD card before opening the unit.
- Back up waypoints, routes and tracks to a computer or card.
- Photograph each step of disassembly.
- Expect to replace the gasket whenever you open the case.
- Parts for this discontinued model are mostly used or aftermarket, so verify compatibility.
Repair Guides
Frequently Asked Questions
Is the Garmin GPSmap 60CSx worth repairing?
Often yes for simple issues such as batteries, terminals, gaskets and keypads, since these are low-cost. Board-level faults may not be worth the effort.
Where do I start if my 60CSx isn't working?
Start with the troubleshooting check: fresh batteries, settings, an outdoor GPS test, and a physical inspection.
Can I find replacement parts for the 60CSx?
The model is discontinued, so parts are mostly used or aftermarket. Verify compatibility before buying.
Will repairs affect waterproofing?
Opening the case can compromise the seal. Replace the gasket and reseal carefully, but don't assume the original rating.
Unofficial repair information for educational purposes. Opening the unit may void warranty and affect water resistance. Garmin and GPSmap are trademarks of Garmin Ltd.; this site is not affiliated with Garmin.
Garmin GPSMAP 60CSx Specifications
The Garmin GPSMAP 60CSx is a handheld GPS receiver with a 256-color TFT display, electronic compass, barometric altimeter and a microSD card slot. It runs on two AA batteries and is rated IPX7 for water resistance. The key specifications are listed below, followed by notes on which repair guide applies to each part.
| Model | Garmin GPSMAP 60CSx (part number 010-00422-00) |
|---|---|
| Type | Handheld GPS receiver |
| Display | 256-color TFT, 160 x 240 pixels, 1.5" W x 2.2" H (2.6" diagonal) |
| Size | Approx. 2.4" W x 6.1" H x 1.3" D (61 x 155 x 33 mm) |
| Weight | 7.5 oz (213 g) |
| Power | 2 AA batteries, up to 18 hours (varies with backlight and use) |
| Water rating | IPX7 |
| GPS receiver | 12-channel, high-sensitivity; typical accuracy about 10 m (33 ft); 1 Hz update rate |
| Sensors | Electronic compass, barometric altimeter |
| Storage and ports | microSD card slot; USB and serial interface |
| Data capacity | 1,000 waypoints, 50 routes, 10,000 track points |
| Included software | MapSource Trip & Waypoint Manager |
Specifications are based on manufacturer and retailer data sheets and may vary slightly by region or production batch. Confirm against your own unit before ordering parts.
