Product Overview

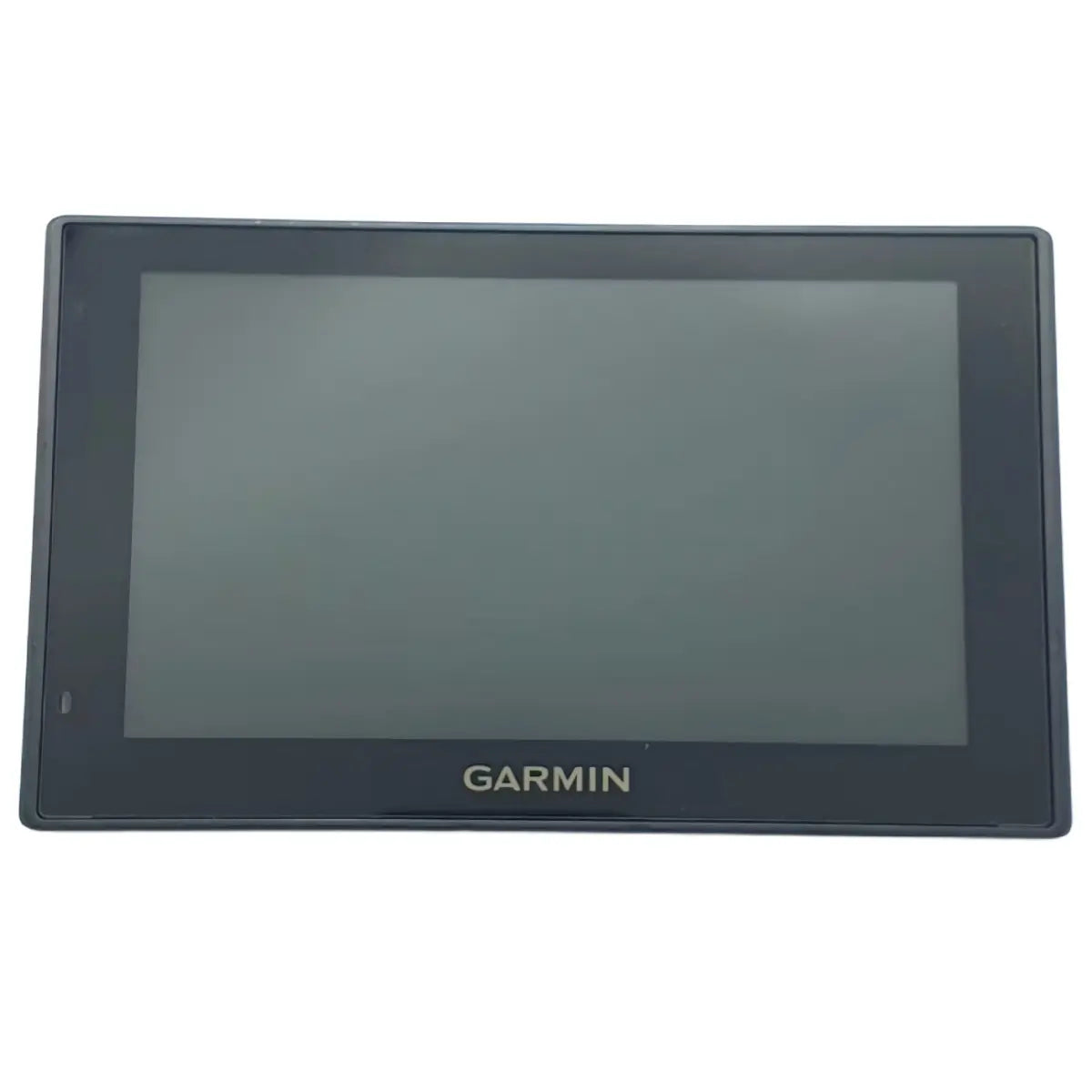

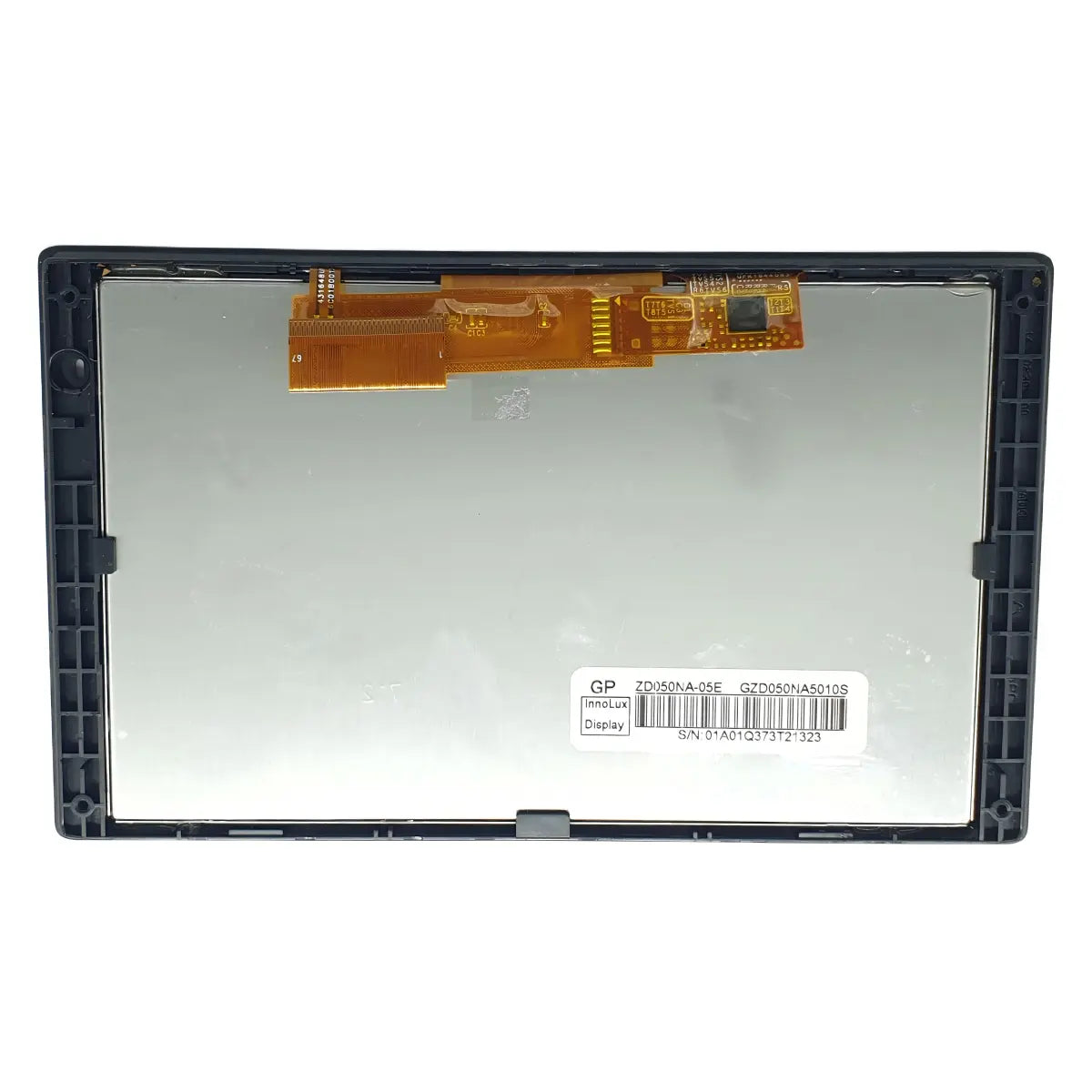

This is a genuine LCD touch screen display with frame for the Garmin DriveSmart 51 LMT-S GPS navigator, graded at 95–100% cosmetic condition. It does not include adhesive. It is intended for users replacing a cracked, unresponsive, or otherwise damaged display on their DriveSmart 51 LMT-S unit.

Compatibility

Compatible:

• Garmin DriveSmart 51 LMT-S

Not confirmed:

• Garmin DriveAssist 51 LMT-S (a separate product line with dash cam functionality; reportedly shares a similar 5" screen resolution, but not independently confirmed for parts interchangeability)
• Garmin Drive 51 LMT-S (different product line, despite similar naming)
• Garmin DriveSmart 50 LMT (different, earlier hardware generation)
• Other Drive or DriveSmart series 50-series models

Garmin's 50-series lineup includes several closely named models (DriveSmart 51 LMT-S, DriveAssist 51 LMT-S, Drive 51 LMT-S, DriveSmart 50 LMT). These are separate products, and although several share a similar 5" / 480×272 display, internal hardware and connectors are not guaranteed to match across product lines. Confirm the exact model printed on the back of your device before ordering.

Common Replacement Scenarios

This part is typically needed when the original display shows:

• Cracked or shattered glass
• Unresponsive or partially unresponsive touchscreen
• Dead pixels or display artifacts
• No image / black screen despite the unit powering on
• Discoloration, flickering, or abnormal display output

Key Features

• Genuine part, graded at 95–100% cosmetic condition — minimal to no visible wear
• Combined LCD panel and capacitive touch digitizer layer
• Includes outer frame/bezel
• Does not include adhesive; adhesive should be sourced separately for reassembly
• Matches original display specification: 5" diagonal (111 x 63 mm active area), 480 x 272 resolution (WQVGA), capacitive touchscreen

Specifications

Installation Notes

Replacing this component involves opening the device housing and disconnecting the internal ribbon cable that links the screen to the mainboard. Since adhesive is not included, reassembly requires separately sourced adhesive strips to properly seat the frame against the housing. This repair involves delicate ribbon connectors and precise reassembly, so professional installation or prior repair experience is recommended to avoid damaging the connector or surrounding components.

What Is Included

• 1x Garmin DriveSmart 51 LMT-S LCD touch screen display with frame (Genuine, 95–100% cosmetic condition)
• Frame/bezel: included
• Adhesive: not included

Buying Checklist

• Confirm your device is the Garmin DriveSmart 51 LMT-S (not DriveAssist 51 LMT-S, Drive 51 LMT-S, or DriveSmart 50 LMT)
• Note that adhesive is not included — source separately for reassembly
• Compare the connector position and ribbon cable orientation with your original screen before ordering
• Confirm whether professional installation is required for your comfort level

FAQ

Q: My touchscreen is unresponsive after the device was dropped — is this a screen problem?
A: On the closely related Garmin DriveAssist 51 LMT-S, unresponsive touch input after a drop was reported to result from a damaged digitizer or loose internal connections, with visible cracks being one indicator worth checking first.
Source: JustAnswer — Garmin DriveAssist 51 LMT-S Screen Repair and Troubleshooting — note: this source covers the DriveAssist 51 LMT-S, a related but different model from the DriveSmart 51 LMT-S.

Q: My touchscreen is frozen or not responding to touch at all — what should I check first?
A: On the related Garmin DriveSmart 50 LMT, this kind of issue was tied to a disconnected or damaged ribbon cable, which can loosen over time and disrupt the connection between the screen and motherboard.
Source: iFixit — Garmin DriveSmart 50 LMT Touchscreen Is Unresponsive — note: this source covers the DriveSmart 50 LMT, an earlier hardware generation, not the DriveSmart 51 LMT-S itself.

Q: Will a replacement screen fix a device that won't power on at all?
A: Not necessarily. A device that fails to power on can also result from a battery issue rather than the display — on the DriveSmart 51, a completely dead unit with no display response was traced to a failed, user-replaceable battery in one reported case.
Source: JustAnswer — Garmin DriveSmart 51 Battery Replacement & Troubleshooting

Q: Does installation require professional repair skills?
A: Yes. The repair involves device disassembly, ribbon cable reconnection, and applying adhesive separately during reassembly, so professional installation or prior repair experience is recommended.

Q: What should I check before ordering?
A: Confirm the exact model (Garmin DriveSmart 51 LMT-S, not DriveAssist 51 LMT-S or Drive 51 LMT-S), compare your original screen's connector, and plan to source adhesive separately since it is not included.

Package Include

• Repair parts are shown in the picture.

Product Inspection

• Display Screen Check
• Cable Connection Check
• Frame Waterproof Test
• Contact Oxidation Inspection
