Product Description
Product Overview
This listing offers individual replacement repair parts for the Garmin Fenix 5 Plus, a 47mm multisport GPS watch with a 1.2-inch color display. Select the specific part you need from the dropdown — nine component options are available, each priced and stocked separately to match your exact repair need.
Entity summary:
- Brand: Garmin
- Product family: Fenix 5 Plus series
- Exact model: Fenix 5 Plus

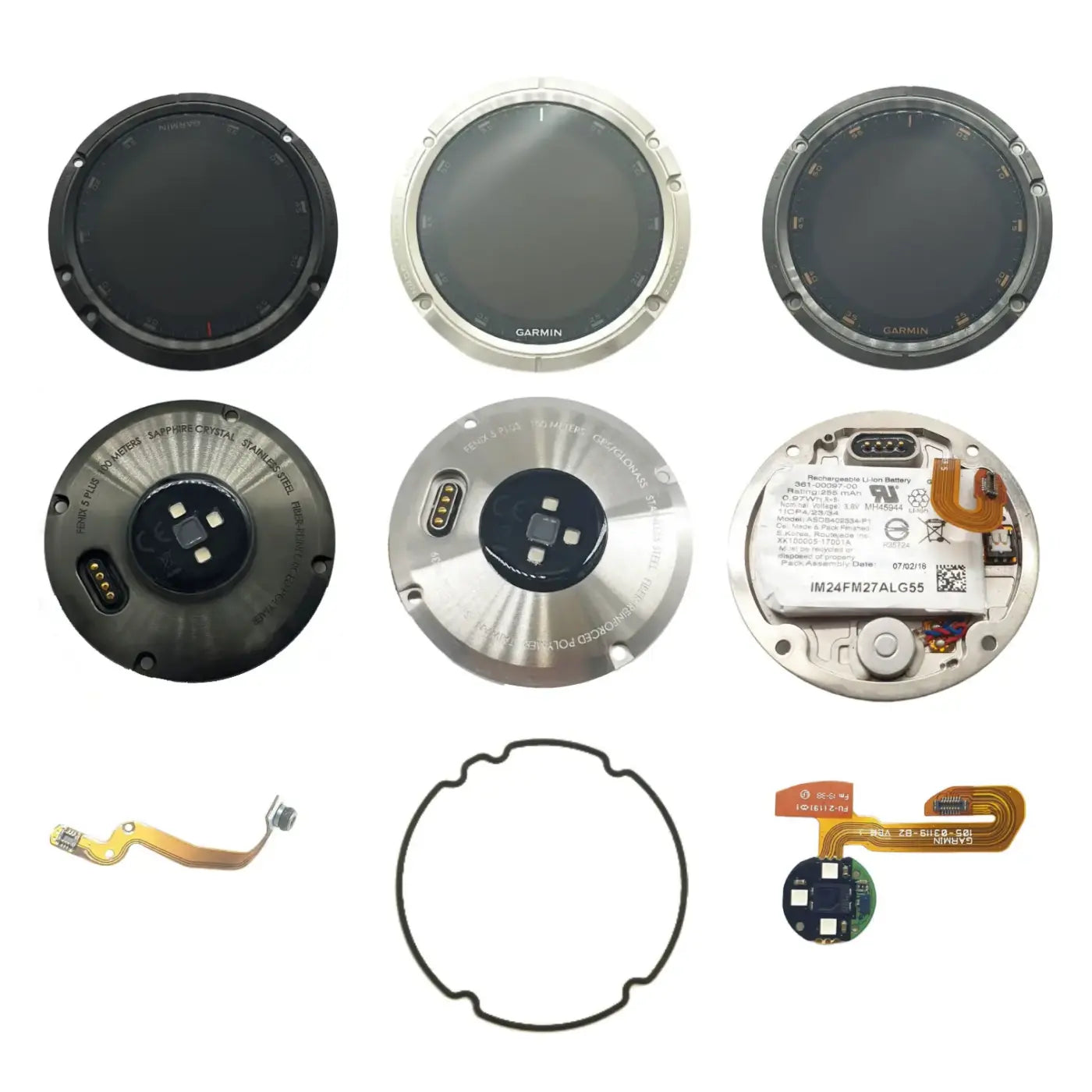

- Part types available: LCD display screen (3 styles) / back cover (4 variants) / heart rate flex cable / barometer / waterproof ring
- Device type: Multisport GPS smartwatch (button-controlled, non-touch)
Compatibility
Confirmed compatible:
- Garmin Fenix 5 Plus
Not confirmed — do not assume compatibility:
- Garmin Fenix 5 (original, non-Plus), Fenix 5S Plus (42mm case), Fenix 5X Plus (51mm case), Fenix 6, or other Fenix models. Different case sizes are not interchangeable. Confirm your exact model and case size before ordering.
- Which LCD style matches your watch is not yet confirmed on our end — Style 1/2/3 likely correspond to different bezel/case finishes (e.g., black stainless steel, silver, or titanium editions), each of which may use a Sapphire or Glass lens depending on edition. Please confirm your exact case/bezel material before selecting.
Which Part Do You Need?

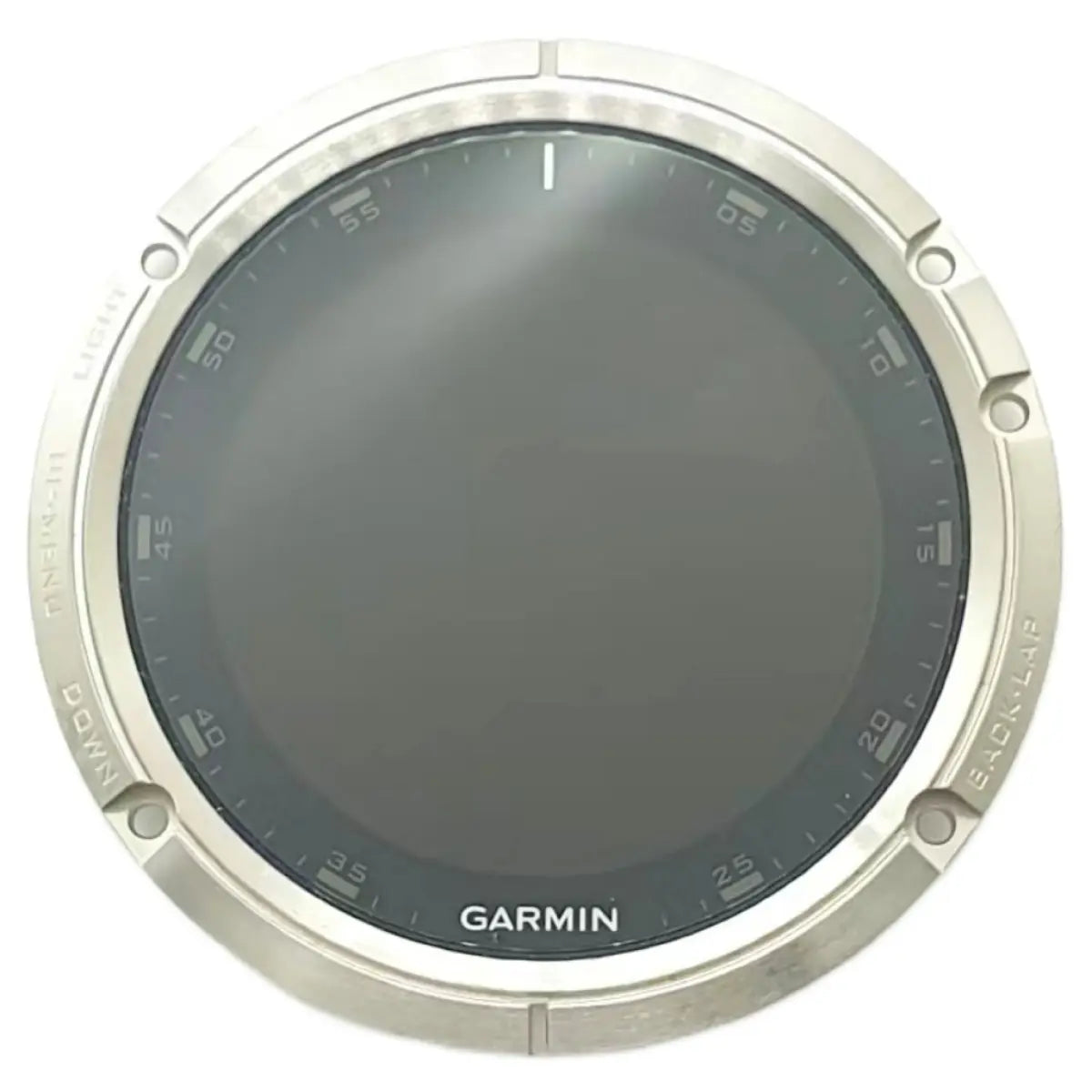

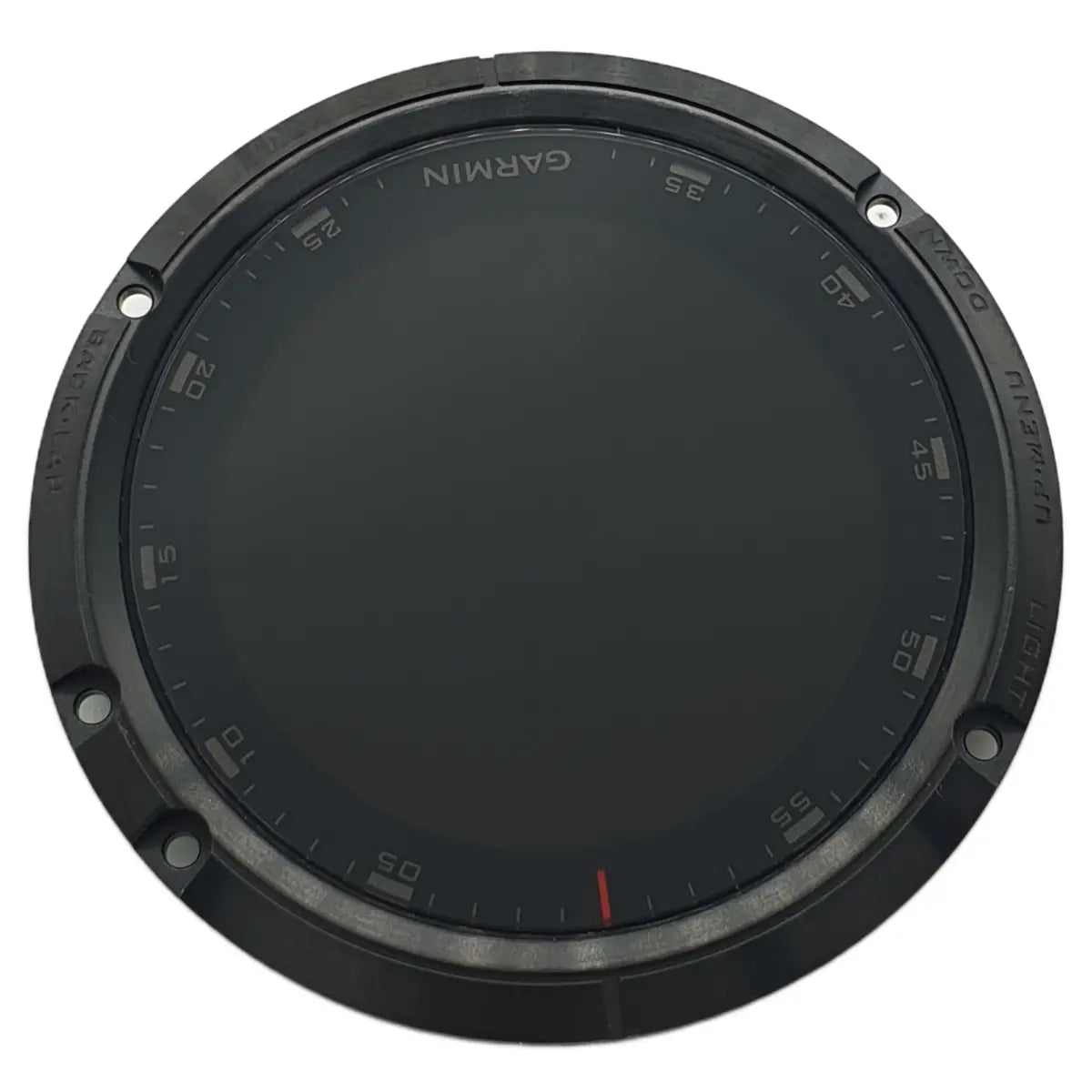

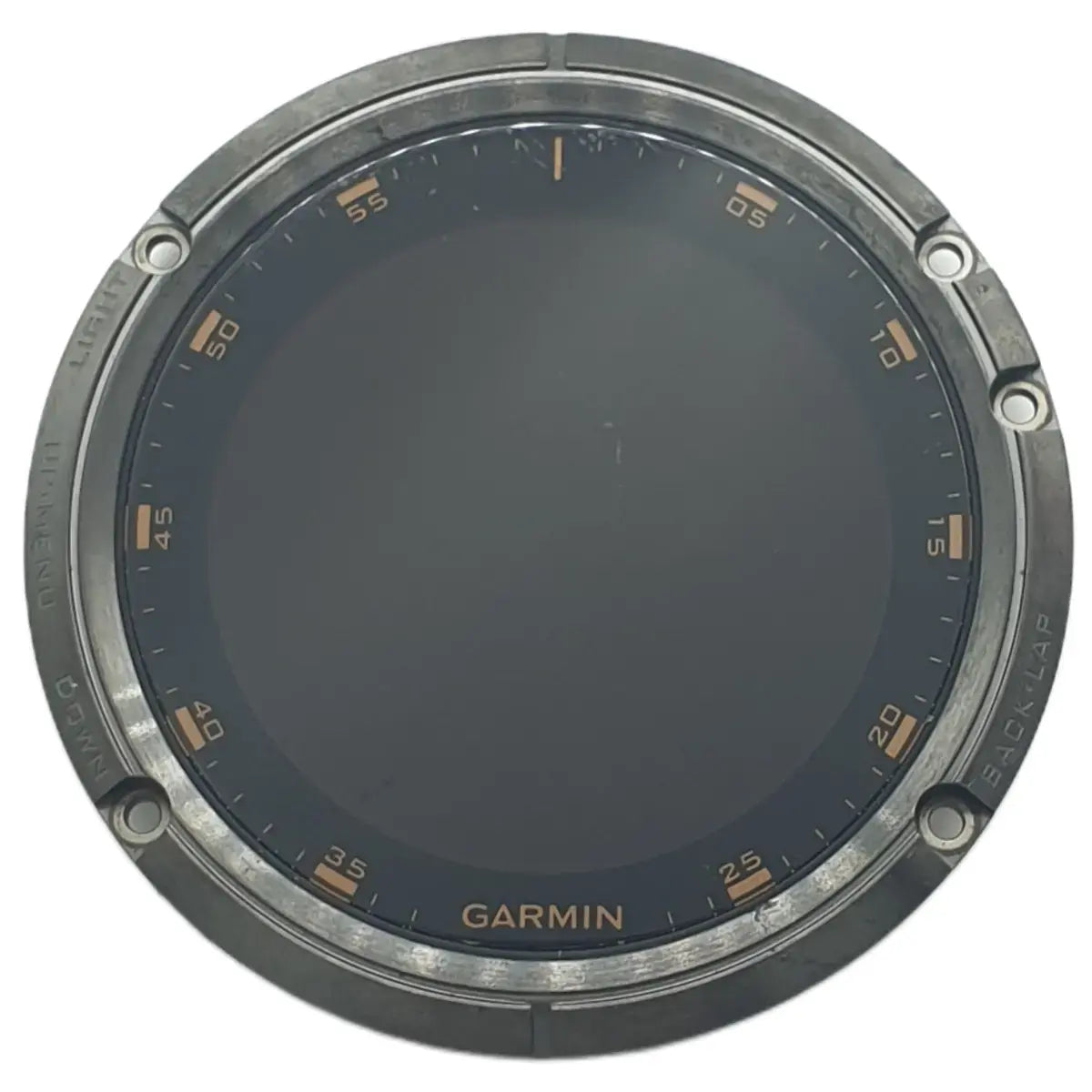

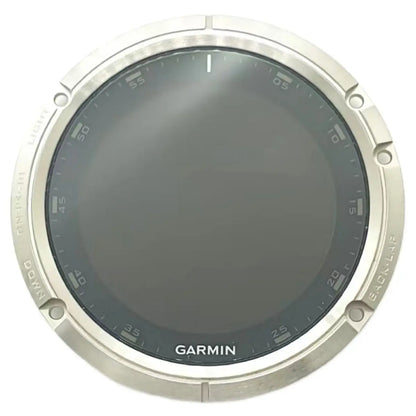

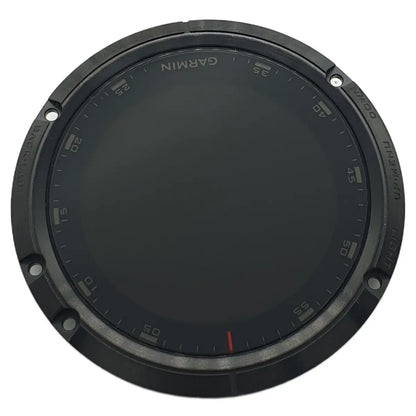

LCD Display Screen — Style 1 / Style 2 / Style 3 — $55.00 each (20 in stock each)
The round display assembly showing the watch face. Three styles are available; match to your specific case/bezel finish (confirm with us if unsure). Order this if your screen is cracked, unresponsive, showing dead pixels, or displaying no image.

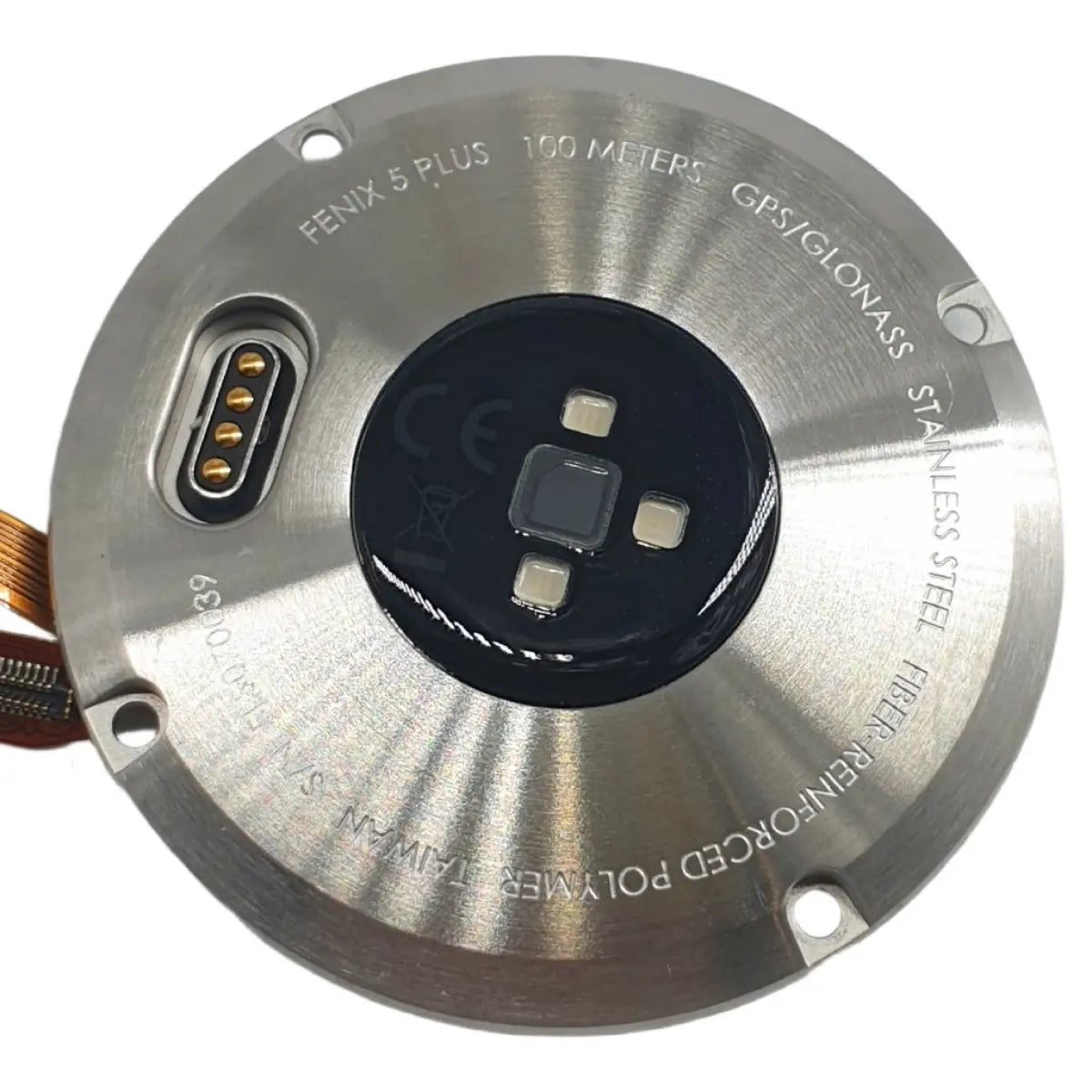

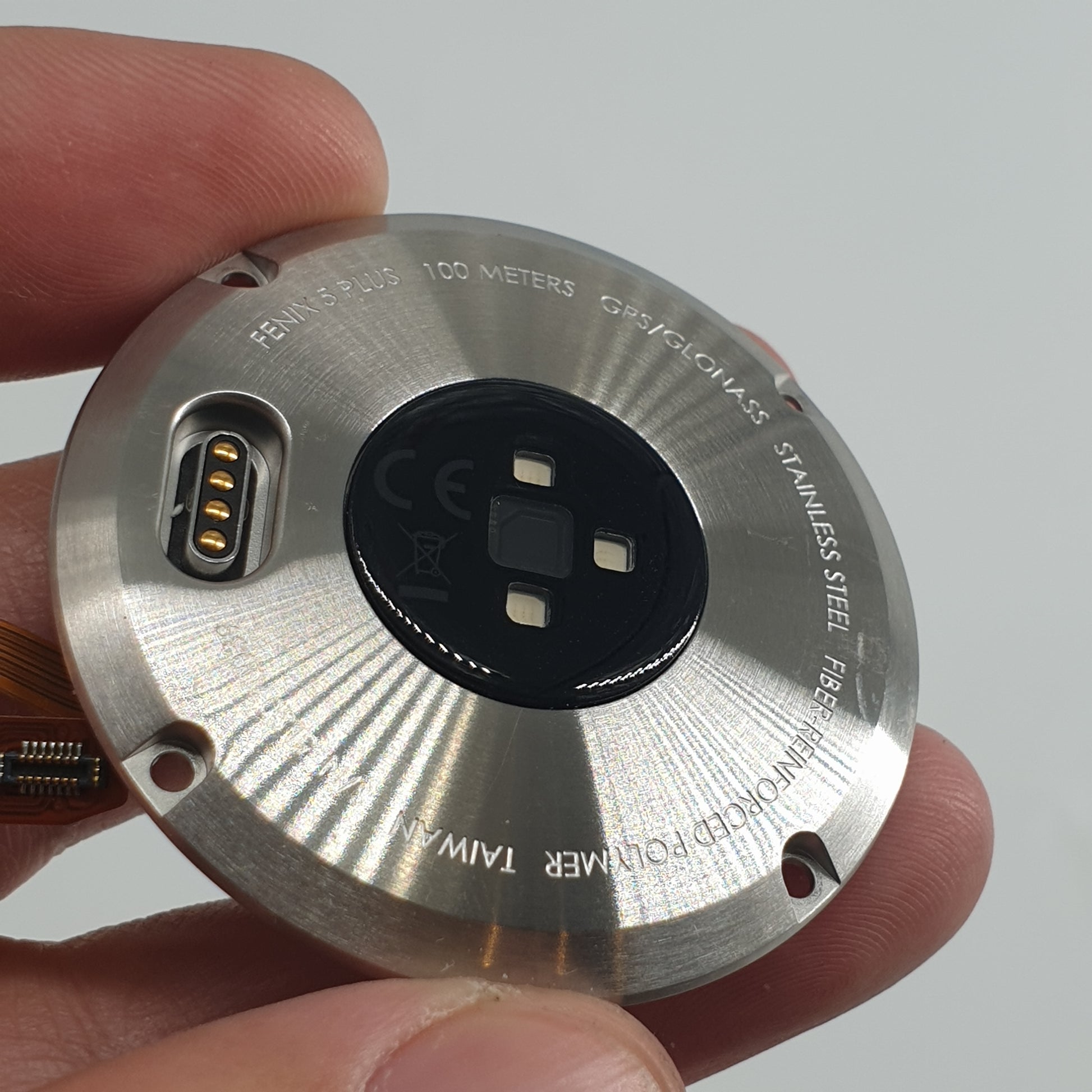

Back Cover Silver Style — $25.00 (20 in stock)
Rear housing in silver finish, without battery.

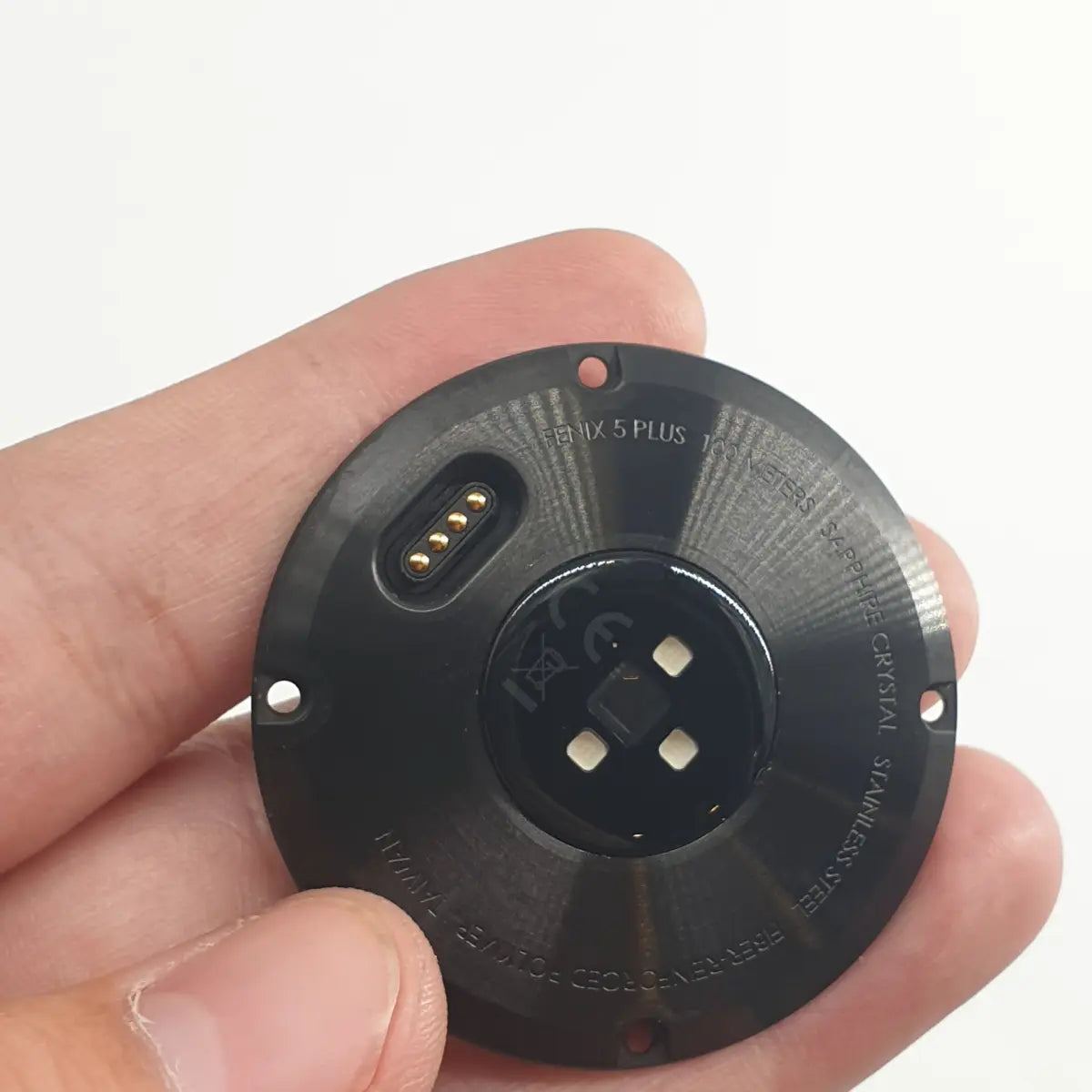

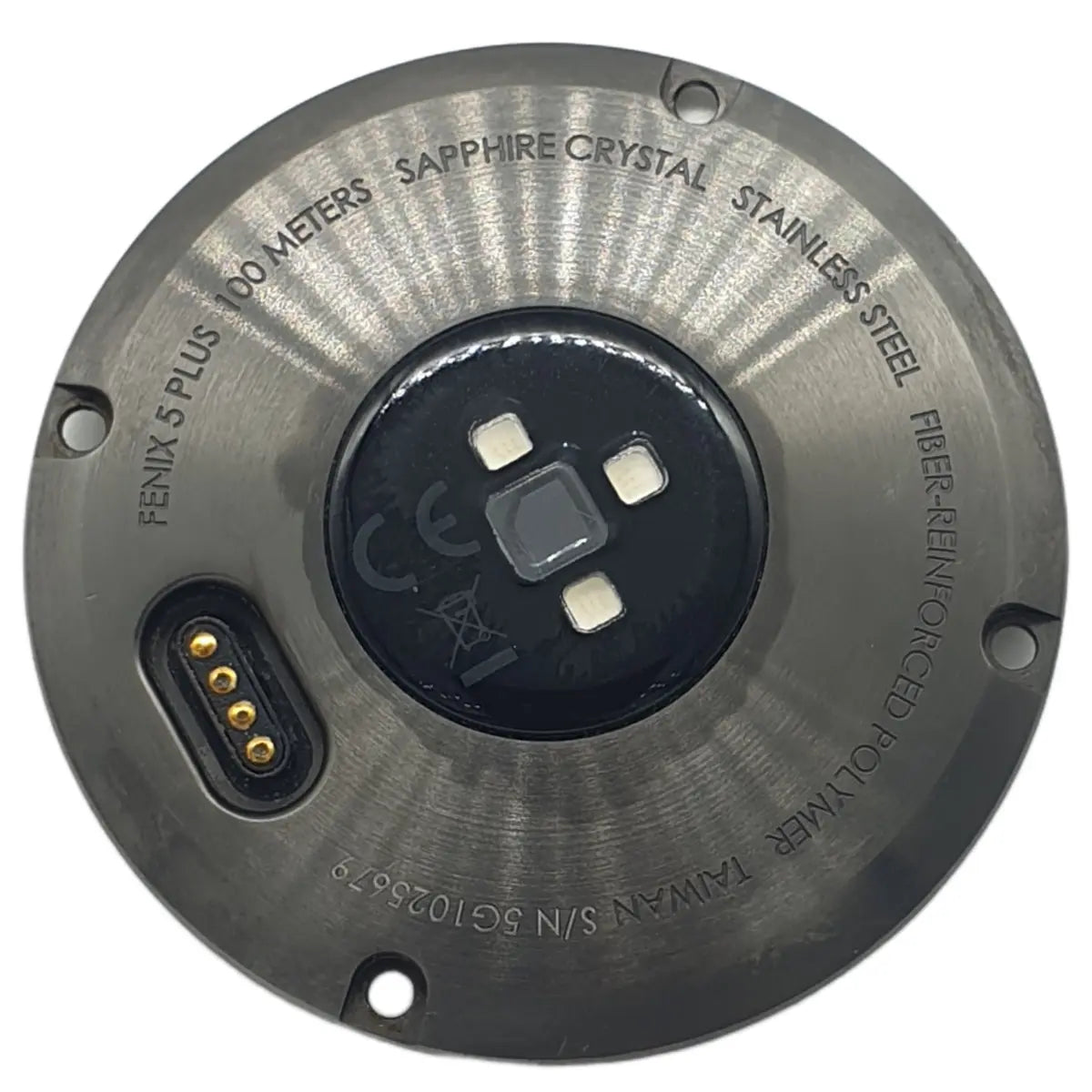

Back Cover Black Style — $25.00 (20 in stock)
Rear housing in black finish, without battery.

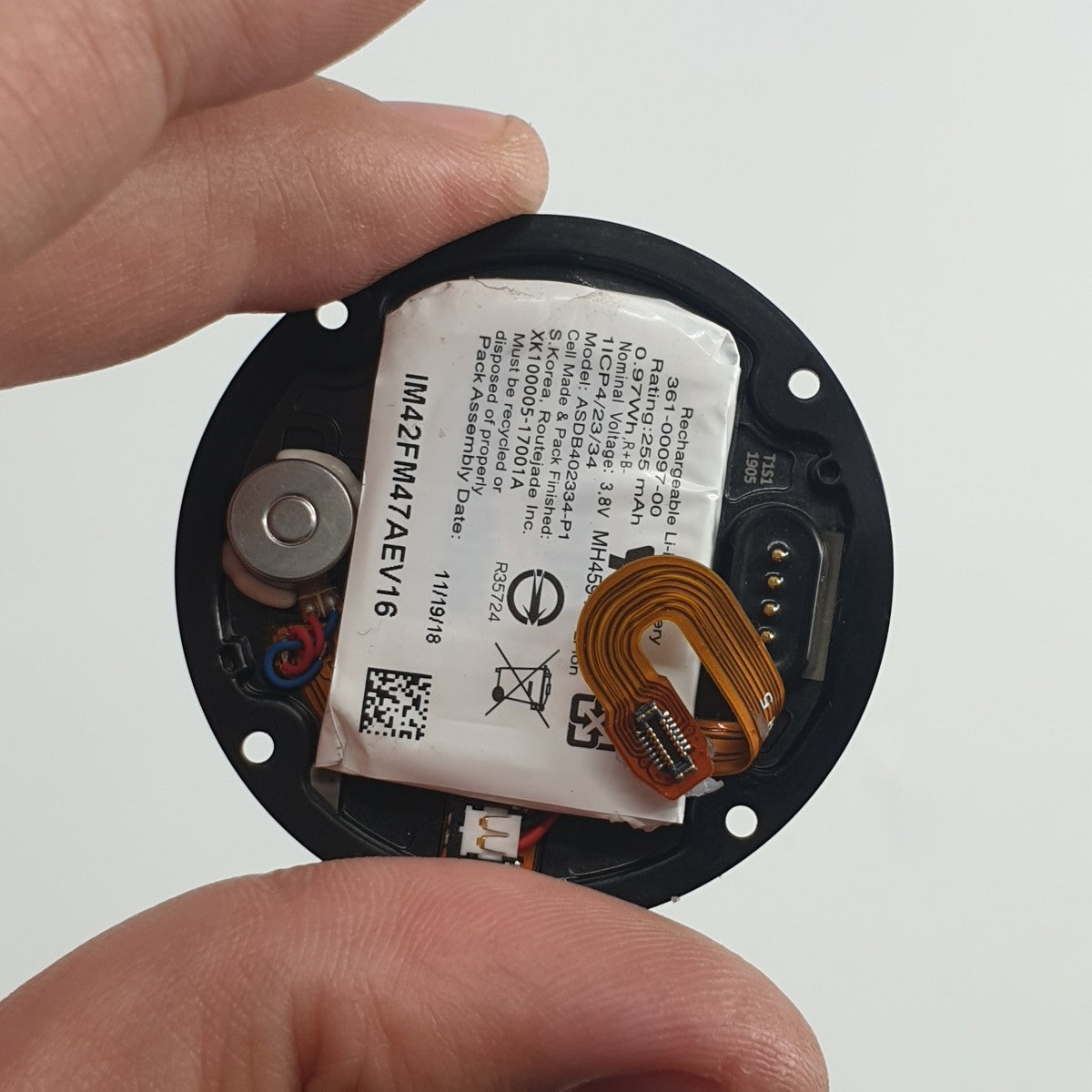

Back Cover Black Style With Battery — $30.00 (20 in stock)
Rear housing in black finish, including battery.

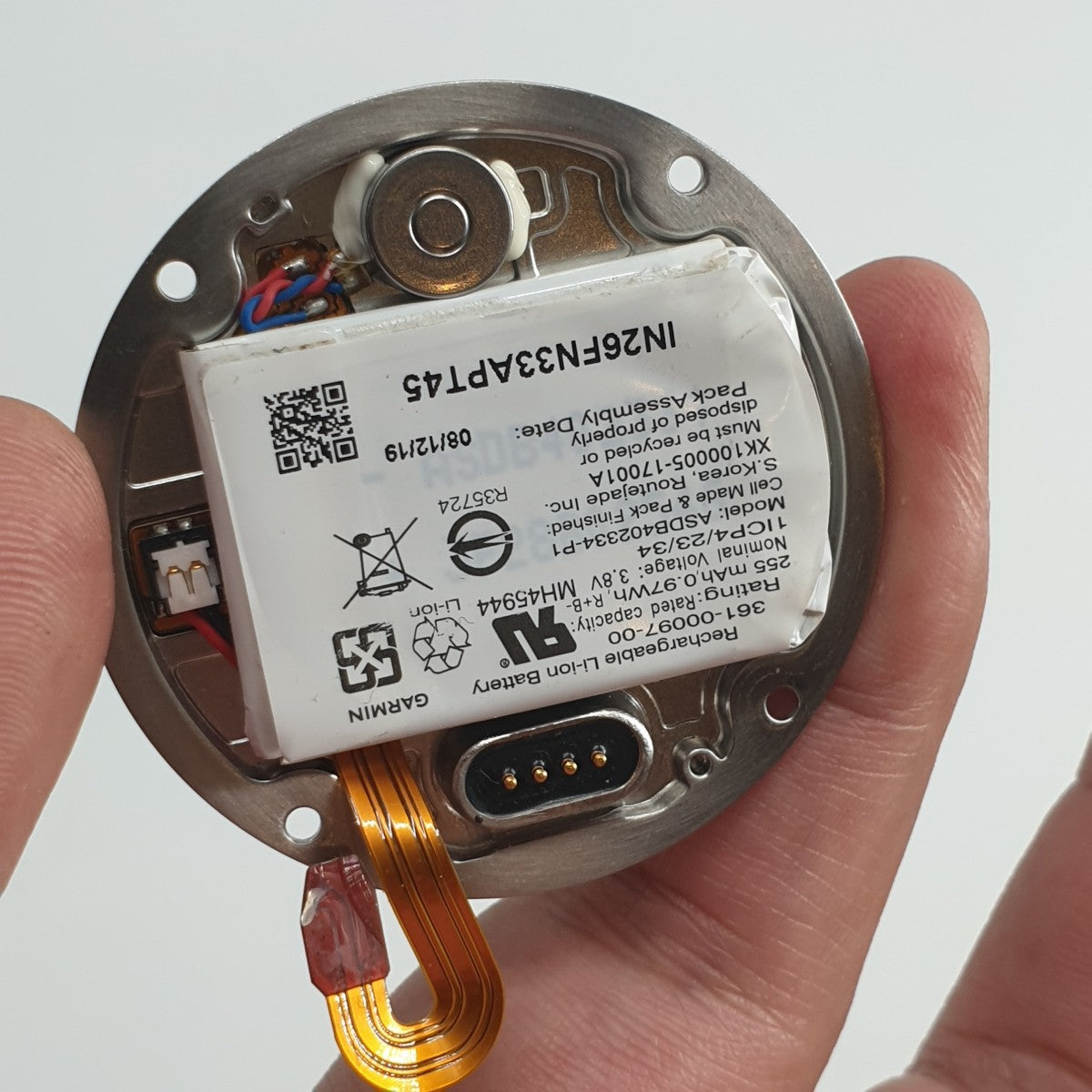

Back Cover Silver Style With Battery — $30.00 (20 in stock)
Rear housing in silver finish, including battery.

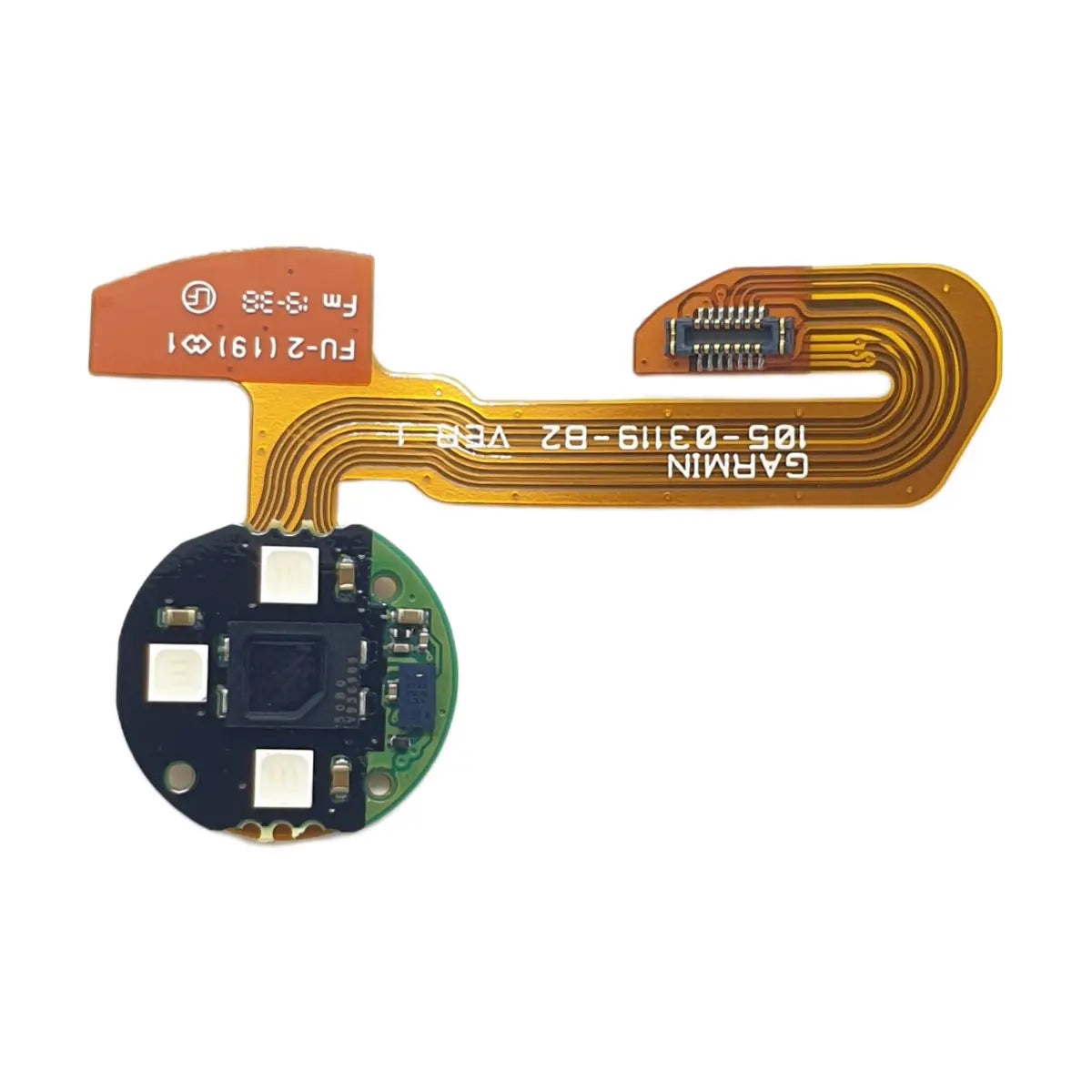

Heart Rate Flex Cable — $15.00 (20 in stock)
The internal optical sensor module and flex cable connecting the heart rate sensor to the mainboard. Order this if your watch shows inaccurate or no heart rate readings.

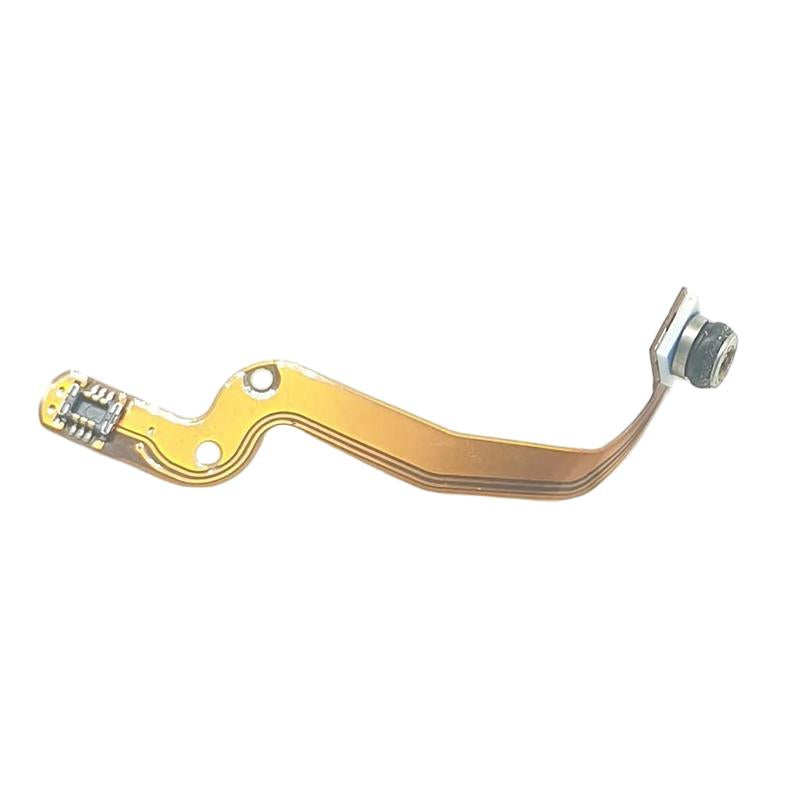

Barometer — $15.00 (20 in stock)
The internal barometric pressure sensor component. Order this if altitude/barometric readings are inaccurate or not functioning.

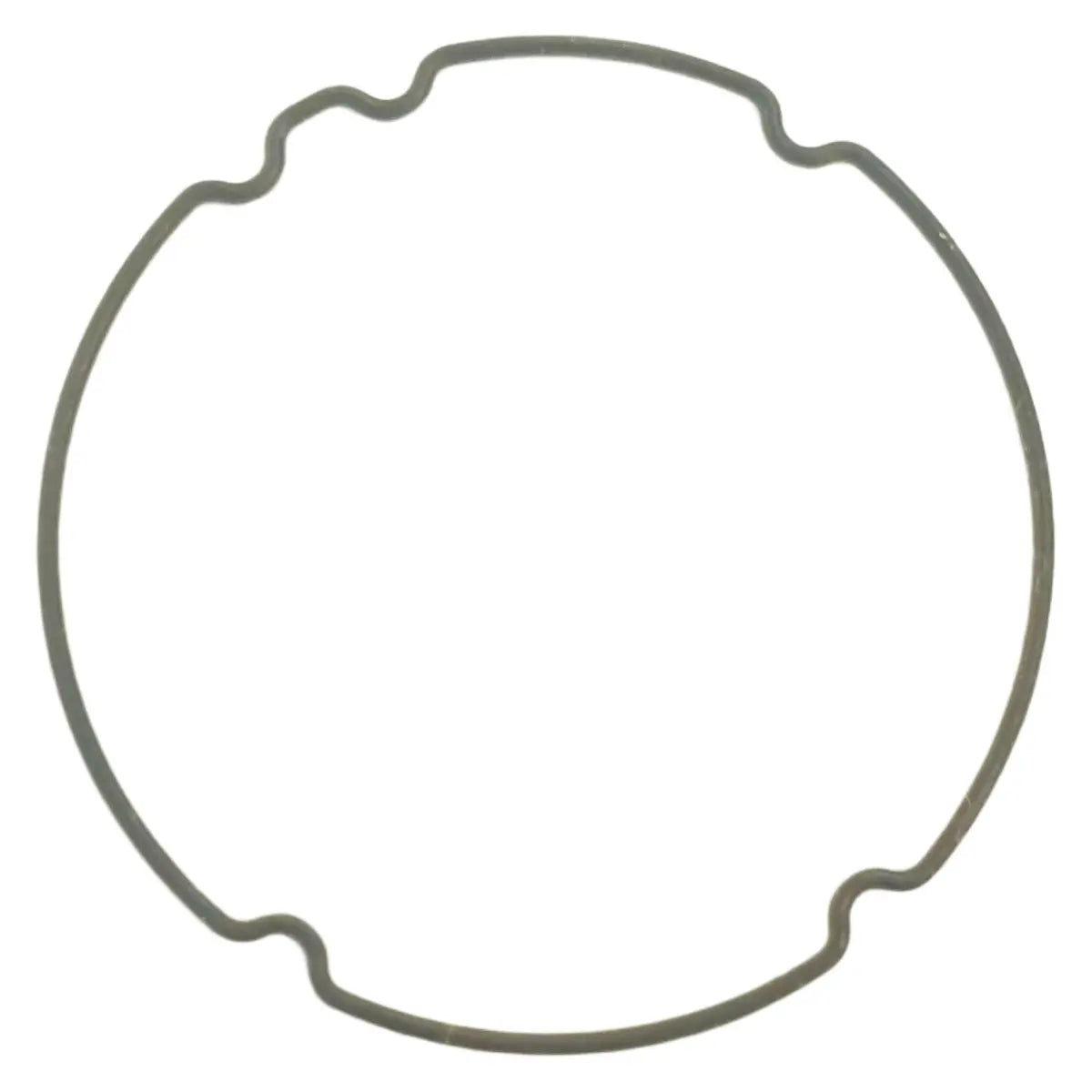

Waterproof Ring — $12.00 (20 in stock)
The internal sealing gasket/ring used to maintain water resistance during reassembly. Order this when replacing other internal components, to help preserve the watch's water rating.
(Total combined stock across all nine parts: 200 units available.)
Common Replacement Scenarios
- Cracked or shattered display glass/lens
- Dead pixels, no image, or backlight failure
- Cracked, scratched, or damaged back cover
- Depleted or failing battery (covered by "with battery" back cover options)
- Inaccurate or missing heart rate readings
- Inaccurate altitude/barometric pressure readings
- Compromised water resistance after a prior repair, needing a new seal
Key Features
- Nine individual repair parts, sold separately by component and priced accordingly
- Designed to match the original Fenix 5 Plus 47mm case
- Covers the most commonly replaced components: screen, back cover (with or without battery), heart rate sensor, barometer, and waterproof seal
- In stock and available to ship
Specifications
Fenix 5 Plus original watch specs (confirmed, for reference):
| Spec | Detail |
|---|---|
| Display type | Color, transflective MIP display |
| Display resolution | 240 x 240 pixels |
| Case size | 47 mm |
| Weight | 86 g (standard case); 76 g (titanium version) |
| Lens material | Sapphire crystal (standard on Plus editions; some sources note a "Glass" edition with chemically strengthened glass) |
These parts (repair components):
| Part | Price | Stock |
|---|---|---|
| LCD Display Screen Style 1 | $55.00 | 20 |
| LCD Display Screen Style 2 | $55.00 | 20 |
| LCD Display Screen Style 3 | $55.00 | 20 |
| Back Cover Silver Style | $25.00 | 20 |
| Back Cover Black Style | $25.00 | 20 |
| Back Cover Black Style With Battery | $30.00 | 20 |
| Back Cover Silver Style With Battery | $30.00 | 20 |
| Heart Rate Flex Cable | $15.00 | 20 |
| Barometer | $15.00 | 20 |
| Waterproof Ring | $12.00 | 20 |
Installation Notes
Opening the Fenix 5 Plus case involves removing the back cover screws and carefully separating the sealed housing to access internal components. The original watch carries a water resistance rating, so replacing the waterproof ring/gasket during any internal repair is strongly recommended to preserve that rating. Replacing the LCD, heart rate flex cable, or barometer requires disconnecting small internal connectors. Professional installation is recommended unless you have prior watch repair experience. We do not provide detailed disassembly steps here, as incorrect handling of internal connectors or seals can cause permanent damage.
What's Included
Depends on the selected option:
- LCD Display Screen (any style): 1x display assembly
- Back Cover (any variant): 1x back cover housing; battery included only in the "With Battery" options
- Heart Rate Flex Cable: 1x sensor module with flex cable
- Barometer: 1x barometric sensor component
- Waterproof Ring: 1x sealing gasket/ring
Buying Checklist
- Confirm your watch is specifically the Fenix 5 Plus (47mm case) — not the 5S Plus (42mm) or 5X Plus (51mm).
- Confirm which LCD style (1/2/3) matches your case/bezel finish before ordering — contact us if unsure.
- Decide whether you need a back cover with or without battery.
- Consider ordering a waterproof ring alongside any internal repair to help preserve water resistance.
- Confirm whether professional installation is recommended for your comfort level, especially for the LCD, heart rate flex cable, or barometer.
FAQ
Q: How do I know which LCD style I need?
A: The three styles likely correspond to different case/bezel finishes. If you're unsure which one matches your watch, contact us with your model details before ordering.
Q: What's the difference between the back cover options?
A: Silver vs. black is a cosmetic finish choice, and each comes in a version with or without a battery included.
Q: Should I replace the waterproof ring during a repair?
A: It's recommended whenever you open the case for an internal repair, to help maintain the watch's original water resistance.
Q: Is this compatible with the Fenix 5S Plus or 5X Plus?
A: No — those use different case sizes (42mm and 51mm) and are not confirmed compatible with these 47mm parts.
Q: Can I buy more than one part at once?
A: Yes — select each needed part from the dropdown; each is priced and stocked separately.
