Garmin GPSMAP 722xs Plus 722 Plus 742xs Plus 742 Plus LCD Display Touch Screen For Replacement
Garmin GPSMAP 722xs Plus 722 Plus 742xs Plus 742 Plus LCD Display Touch Screen For Replacement
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Orders are shipped within 36 business hours.
Estimated delivery:
• USA: 7–15 business days (tracking included)
• UK, AU, CA & Western Europe: 15–25 business days
• Russia: 7–15 business days
• Other regions: 20–30 days
Note: International packages may be declared as a gift with a lower value. For more details, check our Shipping Policy.
Warranty Coverage
Warranty Coverage
All products include a 3-month warranty and free lifetime technical support. However, Please note that our warranty covers only defects or quality issues.
Tax Information
Tax Information
Although we have made every effort to prepay taxes on behalf of our customers, certain countries and regions do not permit us to prepay duties (including GST) on your behalf. If you have any questions regarding customs clearance or require assistance in minimizing your tax burden, please contact our online customer support team; we are dedicated to providing you with full assistance.
- Fres Shipping
- Hassle-Free Returns
- 3-month Warranty
Product Description
Product Overview

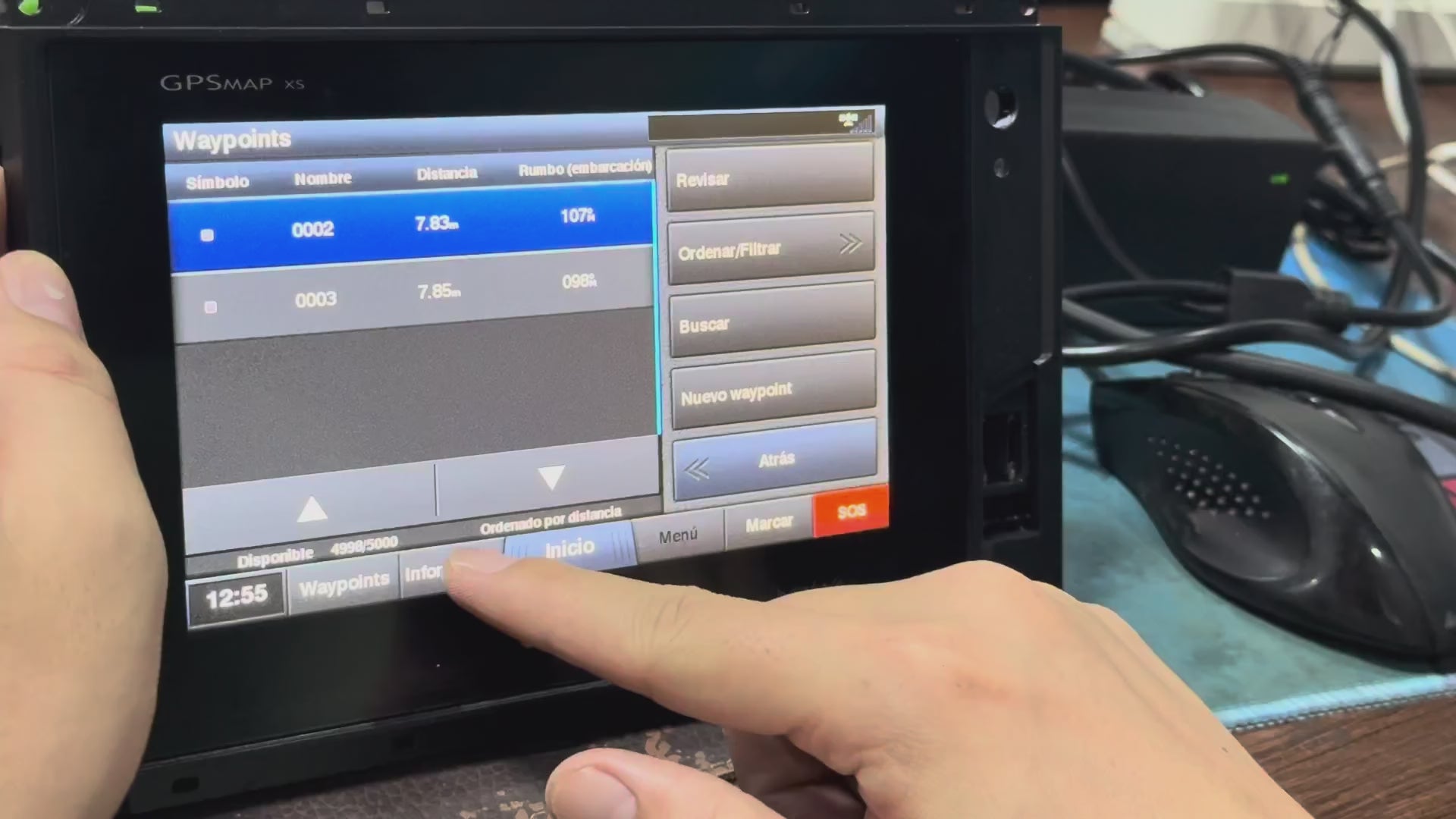

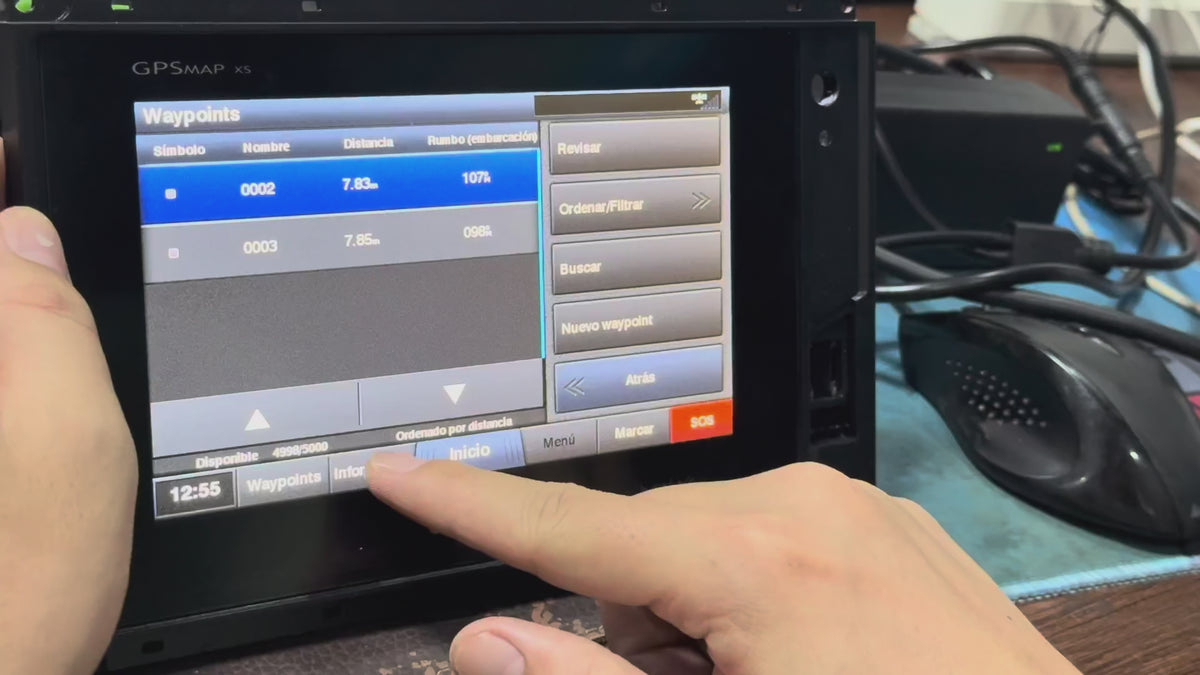

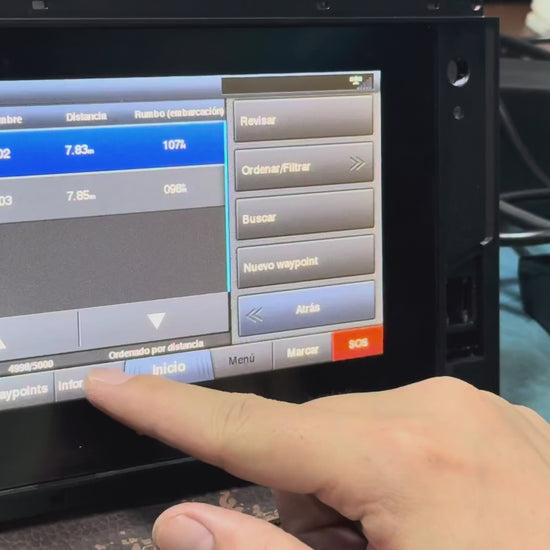

This is a complete replacement display assembly for the Garmin GPSMAP 722xs Plus, 722 Plus, 742xs Plus, and 742 Plus marine chartplotters, including the LCD panel and touch digitizer as originally assembled by Garmin. This is an OEM-pull part, removed from a donor unit, graded A (95–100% cosmetic condition) and tested to confirm 100% functionality before sale.
Entity summary:
- Brand: Garmin
- Product family: GPSMAP Plus series (compact 7" line)
- Exact models: GPSMAP 722xs Plus, 722 Plus, 742xs Plus, 742 Plus
- Part type: Full LCD/touch screen display assembly
- Condition: OEM-pull, Grade A (95–100%), tested 100% functional
- Device type: Marine multifunction display (MFD) / chartplotter
Compatibility
Confirmed compatible (7-inch touchscreen, shared display assembly):
- Garmin GPSMAP 722xs Plus
- Garmin GPSMAP 722 Plus
- Garmin GPSMAP 742xs Plus
- Garmin GPSMAP 742 Plus
Not confirmed — do not assume compatibility:
- GPSMAP 722xsv, 742xsv, 902xs, 922xs, or other GPSMAP series with "v" (sonar-integrated) variants or larger screen sizes — these may use different display assemblies.
- Non-"Plus" earlier-generation GPSMAP 720/740 models (pre-Plus revision), unless explicitly confirmed by part number match.
- Always confirm the exact model printed on your unit's housing before ordering, since Garmin's 7" GPSMAP lineup spans several sub-series that are not all interchangeable.
Common Replacement Scenarios
This assembly is typically ordered to replace an original display showing:
- Cracked or shattered outer glass
- Damaged or discolored LCD panel
- Dead pixels or blank sections of the screen
- Touchscreen unresponsive to touch input, in part or entirely
- Display flickering or no image
- Water intrusion damage affecting the screen (common on marine-mounted units)
Key Features
- Complete display assembly — LCD panel and touch digitizer as pulled from the donor unit
- Genuine Garmin OEM part, not an aftermarket reproduction
- Fits four compatible GPSMAP Plus-series models: 722xs Plus, 722 Plus, 742xs Plus, 742 Plus
- Graded A: 95–100% cosmetic condition
- Tested 100% functional before listing
- Restores both image display and multi-touch functionality
Specifications
Original unit display reference (confirmed for compatible models):
| Spec | Detail |
|---|---|
| Display type | Touchscreen, sunlight-readable |
| Display size | 7-inch |
This part (replacement assembly):
| Spec | Detail |
|---|---|
| Assembly type | Complete display assembly (LCD + touch digitizer) |
| Condition | OEM-pull, Grade A (95–100% cosmetic condition) |
| Functional testing | Tested 100% functional |
| Includes gasket/seal | No |
| Includes mounting screws | No |
Installation Notes
The GPSMAP 722/742 Plus series uses a marine-rated, weather-sealed housing. Installing this display assembly involves opening the sealed enclosure and reconnecting internal flex cable(s) to the mainboard. This part does not include the gasket/seal or mounting screws — reuse your original hardware, or source new ones separately, and inspect the seal before reassembly to maintain water resistance. Professional installation is strongly recommended, since improper reassembly of the sealed housing can lead to water intrusion or internal damage. We do not provide detailed disassembly steps here, as incorrect handling of the sealed housing or flex connectors can cause permanent damage.
What's Included
- 1x Garmin GPSMAP OEM-pull display assembly (LCD + touch digitizer), fitting 722xs Plus / 722 Plus / 742xs Plus / 742 Plus
Not included: gasket/seal, mounting screws
Buying Checklist
- Confirm the exact model printed on your chartplotter housing matches one of: 722xs Plus, 722 Plus, 742xs Plus, or 742 Plus.
- Plan to reuse your original gasket/seal and mounting screws, or source replacements — this part does not include them.
- Since this is an OEM-pull part, note it's graded A (95–100% cosmetic) and pre-tested 100% functional.
- Confirm whether professional installation is required or recommended given the sealed marine housing.
FAQ
Q: Does this one part fit all four listed models?
A: Yes — the 722xs Plus, 722 Plus, 742xs Plus, and 742 Plus share the same 7-inch display assembly used in this listing.
Q: Is this a complete display assembly or just the touch glass?
A: It's a complete display assembly, including the LCD panel and touch digitizer, pulled from a donor unit.
Q: What condition is this part in?
A: It's an OEM-pull part graded A (95–100% cosmetic condition) and tested 100% functional before listing.
Q: Does it include the seal/gasket or mounting screws?
A: No. This assembly ships without the gasket/seal or mounting screws — reuse your original hardware or source these separately.
Q: Will this fit my GPSMAP 722xsv or 742xsv?
A: Not confirmed. The "xsv" sonar-integrated variants are not on our confirmed compatibility list — confirm your exact model before ordering.
Q: Does installation require professional repair skills?
A: Yes, professional installation is recommended. These units have a weather-sealed marine housing, and improper reassembly can compromise water resistance.
Package Include
- Repair parts are shown in the picture.
Product Inspection
- Display Screen Check
- Cable Connection Check
- Frame Waterproof Test
- Contact Oxidation Inspection
