Quick answer: Most Garmin GPSmap 60CSx problems come from weak or incorrect batteries, dirty battery contacts, display or battery-type settings, or poor sky view, not a failed board. Work through the checks below in order; only open the case once they pass.
Symptom-to-Cause Table
| Symptom | Most likely cause | Go to |
|---|---|---|
| Won't power on / shuts off randomly | Weak batteries, corroded or bent battery contacts | Battery Terminal guide |
| Fog or water droplets behind the lens | Failed or dirty gasket / seal | Gasket guide |
| Cracked lens, dim or blank display, lines or dead areas | Damaged lens or display module, backlight setting | Screen guide |
| Buttons stick, need hard presses, or do nothing | Worn rubber keypad, dirt, contact pad wear | Keypad guide |
| Slow or no satellite lock | Poor sky view, indoor use, settings, not hardware (usually) | Step 3 below |
Step 1: Power and Batteries
The GPSmap 60CSx runs on two AA batteries. Weak cells are the number one cause of "dead unit" reports.
- Install a pair of fresh, matching AA batteries (same brand, same charge level). Never mix old and new.
- Check orientation against the markings inside the compartment.
- If the unit powers on with fresh cells but dies with your usual set, the batteries (or a high-resistance contact) are the issue.
- Look at the battery terminals for white or green crust, which indicates leakage or corrosion.
Step 2: Check Settings
- Battery type: make sure the battery type in the system settings matches what you installed (alkaline, lithium, NiMH). A wrong setting gives inaccurate battery readings and early low-battery warnings.
- Backlight and brightness: a "dim screen" is often just the backlight timeout or brightness level. A quick press of the power key adjusts the backlight on this series.
- GPS mode: confirm the unit is not set to a mode such as "GPS Off" or "Demo Mode" that prevents a live position fix.
Step 3: GPS Reception
- Go outside with a clear view of the sky. Buildings, dense canopy, vehicles and indoor use all block signals.
- Stay still for several minutes. A cold start after long storage or travel can take longer.
- Check the satellite page. If several satellite bars appear but never lock, try again in a more open area.
- If the unit never sees satellites outdoors with a clear sky, a hardware fault (antenna or receiver) becomes more likely and may be beyond DIY repair.
Step 4: Physical Inspection
- Look through the lens for fogging (gasket problem) or cracks (screen problem).
- Press every button and note which ones fail, since a single dead key suggests keypad wear rather than board failure.

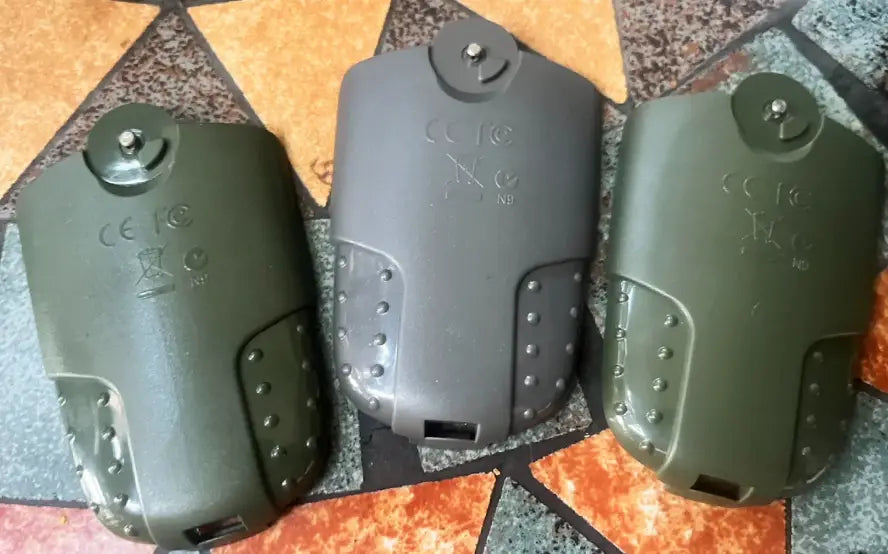

- Open the battery door and inspect the door seal, terminals and springs.
- Check the mini-USB port and data cable if the issue is connection to a computer.
Step 5: Reset and Retest
If everything above looks fine, perform the reset procedure described in the owner's manual for your unit. Back up waypoints, routes and tracks first (via USB or microSD), since a reset can erase user data. After the reset, retest power, display, buttons and satellite acquisition.
[IMAGE TODO - replace with a real image] simple flowchart - Won't power on? → Fresh batteries → Clean contacts → Settings → Open sky test → Hardware repair
Alt text: Garmin GPSmap 60CSx troubleshooting flowchart
Which Repair Guide Do You Need?
- Cracked or faulty display: Screen repair
- Sticky or dead buttons: Keypad buttons repair
- Moisture or fogging: Gasket replacement
- Power loss or corrosion: Battery terminal repair
Frequently Asked Questions
Why won't my Garmin GPSmap 60CSx turn on?
The most common causes are weak or mismatched AA batteries and corroded battery terminals. Try fresh batteries, then clean and inspect the contacts.
Why does my 60CSx never get a satellite lock?
Usually poor sky view or indoor use. Test outdoors in the open for several minutes. If it still fails, there may be an antenna or receiver fault.
Should I reset my 60CSx?
Only after checking batteries, settings and reception, and after backing up your waypoints, routes and tracks.
