Product Overview

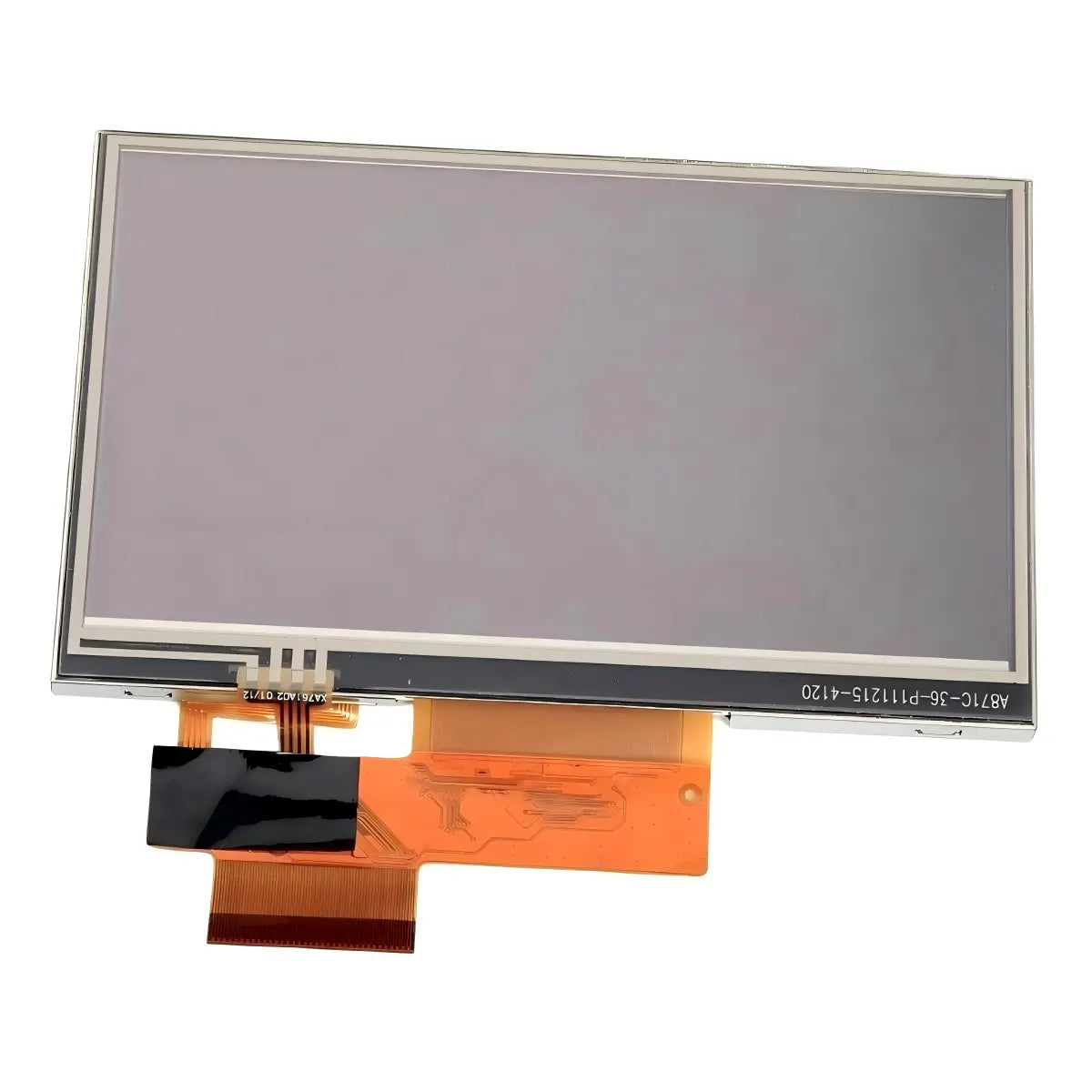

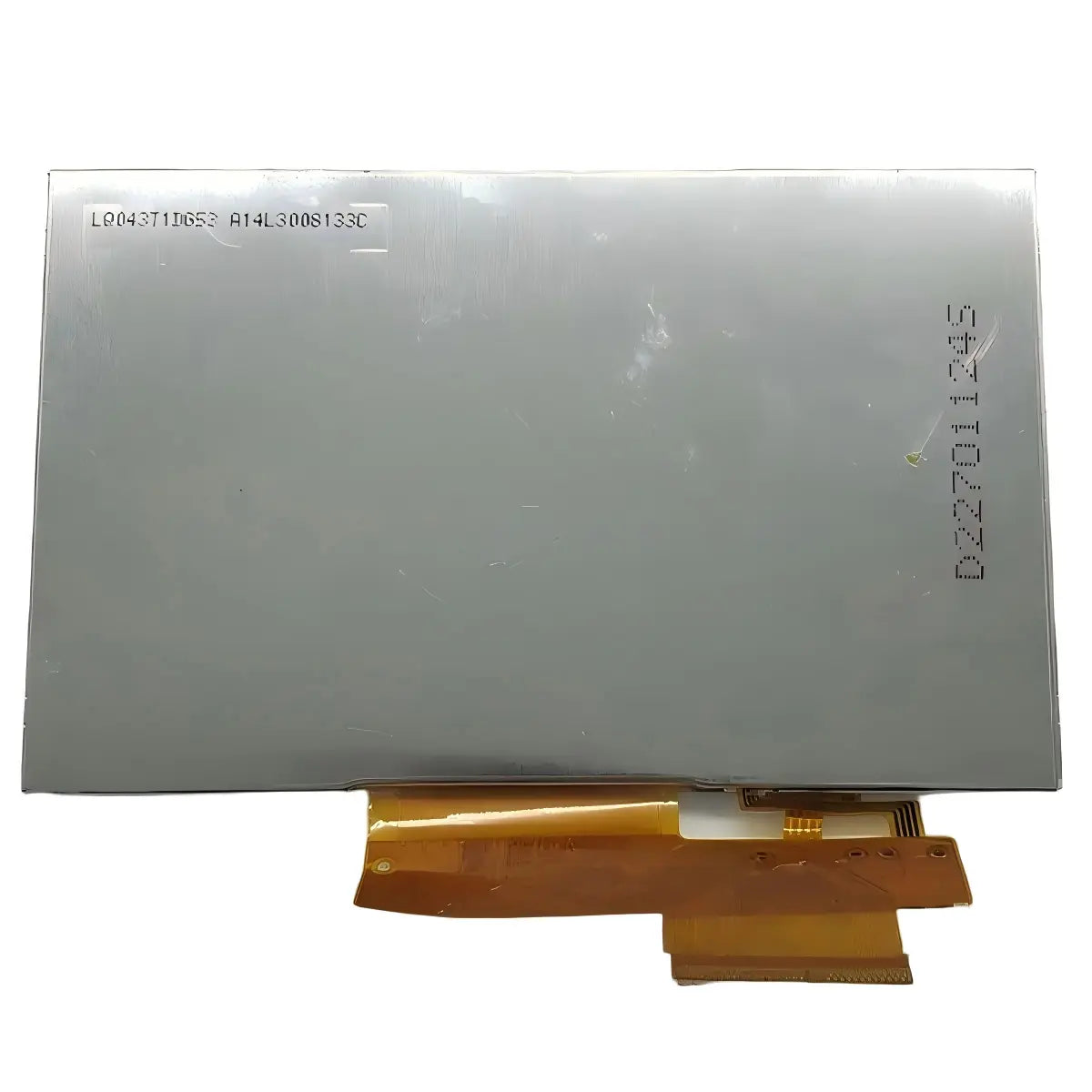

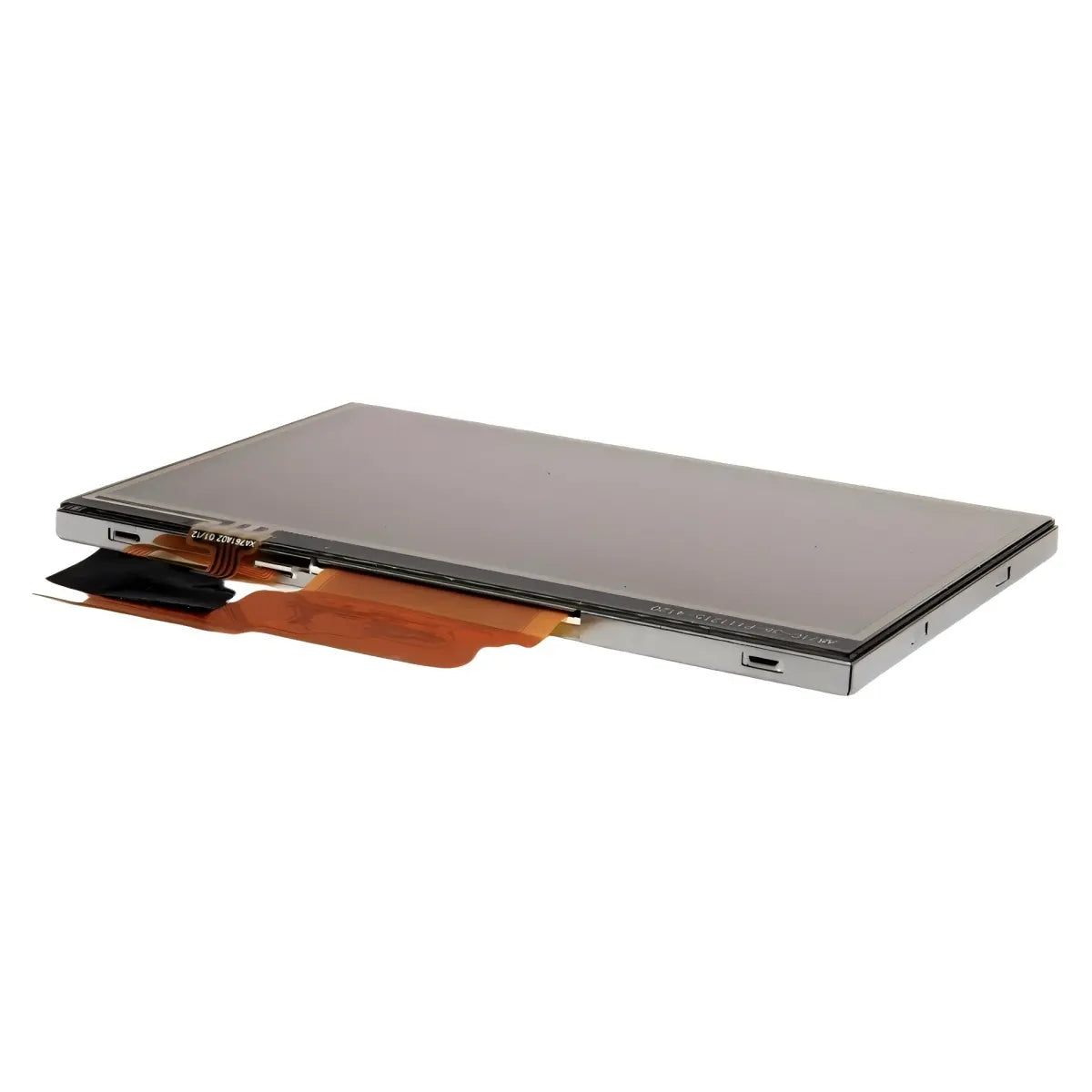

This is a genuine LCD touch screen display, graded at 95–100% cosmetic condition, for the Garmin zūmo 660, 660LM, 665, and 665LM motorcycle GPS navigators, which share the same 4.3" display hardware. It is a screen-only part — it does not include the outer frame or adhesive. It is intended for riders replacing a cracked, unresponsive, or otherwise damaged display on their zūmo 660-series unit.

Compatibility

Compatible:

• Garmin zūmo 660
• Garmin zūmo 660LM
• Garmin zūmo 665
• Garmin zūmo 665LM

These four models share the same 4.3" diagonal, 480 x 272 resolution (WQVGA) touchscreen display, per Garmin's official specifications. The 665/665LM add XM satellite radio and traffic/weather features but use the same display hardware as the 660/660LM.

Not confirmed:

• Garmin zūmo 550 (an earlier model — visually similar but not confirmed to use the same screen assembly)
• Garmin zūmo 390LM / 395LM / 396 LMT-S (different, later hardware generation)
• Garmin zūmo 590LM / 595LM (larger 5" display, different generation)

Confirm your exact model before ordering. Riders on Zumo forums have reported successfully retrofitting screens across some closely related older models (e.g., 550 to 660), but this has not been independently confirmed as an official specification match, so treat cross-model compatibility with caution.

Common Replacement Scenarios

This part is typically needed when the original display shows:

• Cracked or shattered glass
• Unresponsive or partially unresponsive touchscreen, including screens that appear to register touch (changing icon color) but fail to act on it
• Persistent touch calibration failure, where the calibration dot never completes even after repeated attempts
• Screen jitter, or "ghost" phantom touches causing the unit to switch screens on its own
• Dead pixels or display artifacts
• No image / black screen despite the unit powering on

Key Features

• Genuine part, graded at 95–100% cosmetic condition — minimal to no visible wear
• Combined LCD panel and touch digitizer layer
• Screen only — does not include outer frame/bezel
• Does not include adhesive; adhesive should be sourced separately for reassembly
• Matches original display specification: 4.3" diagonal, 480 x 272 resolution (WQVGA TFT), white backlight

Specifications

Installation Notes

Replacing this component involves opening the IPX7-rated waterproof housing and disconnecting the internal flex cable that links the screen to the mainboard. A rubber profile gasket sits between the front case and the touchscreen to seal it — this gasket has a front and back orientation, and riders have reported that installing it backwards can reduce the pressure on the touchscreen enough to cause touch response failures, so pay close attention to its orientation during reassembly. Since this screen does not include a frame or adhesive, reassembly requires reusing your original frame and sourcing adhesive separately. This repair involves delicate flex connectors and precise reassembly, so professional installation or prior repair experience is recommended.

What Is Included

• 1x Garmin zūmo 660/660LM/665/665LM LCD touch screen display (Genuine, 95–100% cosmetic condition)
• Frame/bezel: not included
• Adhesive: not included

Buying Checklist

• Confirm your device is one of: zūmo 660, 660LM, 665, or 665LM
• Note that this listing is screen-only — reuse your original frame and source adhesive separately
• Pay close attention to the orientation of the rubber sealing gasket during reassembly, as installing it backwards can cause touch response issues
• Compare the connector position and flex cable orientation with your original screen before ordering
• Confirm whether professional installation is required for your comfort level

FAQ

Q: My touchscreen stops responding after working fine for months, and calibration never finishes — is this a screen or software issue?
A: This is a commonly reported pattern on the 660 series. Multiple owners describe the screen calibration dot moving when tapped but never completing the calibration process, with Garmin support in some cases stating they no longer support the model and recommending replacement — pointing to a hardware digitizer issue rather than something fixable through software alone.
Source: Zumo User Forums — 660 touch screen not responding; GPS Forums — Garmin Zumo 660

Q: My screen jitters or registers "ghost" touches that switch screens on their own — what could cause that?
A: One rider traced this exact symptom back to the rubber sealing gasket between the front case and the touchscreen being installed backwards during a prior repair, which reduced the pressure holding the touch layer in place. Reversing the gasket to its correct orientation resolved the issue.
Source: FJR Forum — Garmin Zumo Touch Screen problems?

Q: I replaced the screen/digitizer already, but touch stopped working again after a while — what should I check?
A: One rider with a similarly-aged Zumo model found that unplugging and re-seating the digitizer connector temporarily restored function, and cleaning the contacts helped briefly — suggesting a loose or dirty connector can cause intermittent touch failures even after a screen replacement, so double-check this connection if problems return.
Source: Zumo User Forums — 550 Screen Problem

Package Include

• Repair parts are shown in the picture.

Product Inspection

• Display Screen Check
• Cable Connection Check
• Frame Waterproof Test
• Contact Oxidation Inspection
