Product Description
Product Overview

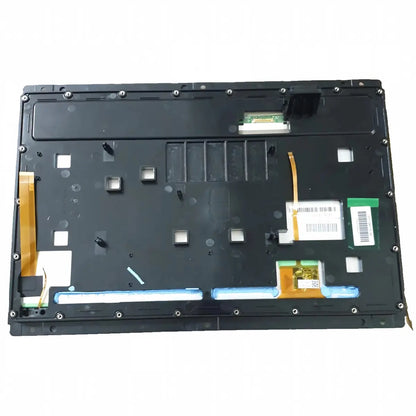

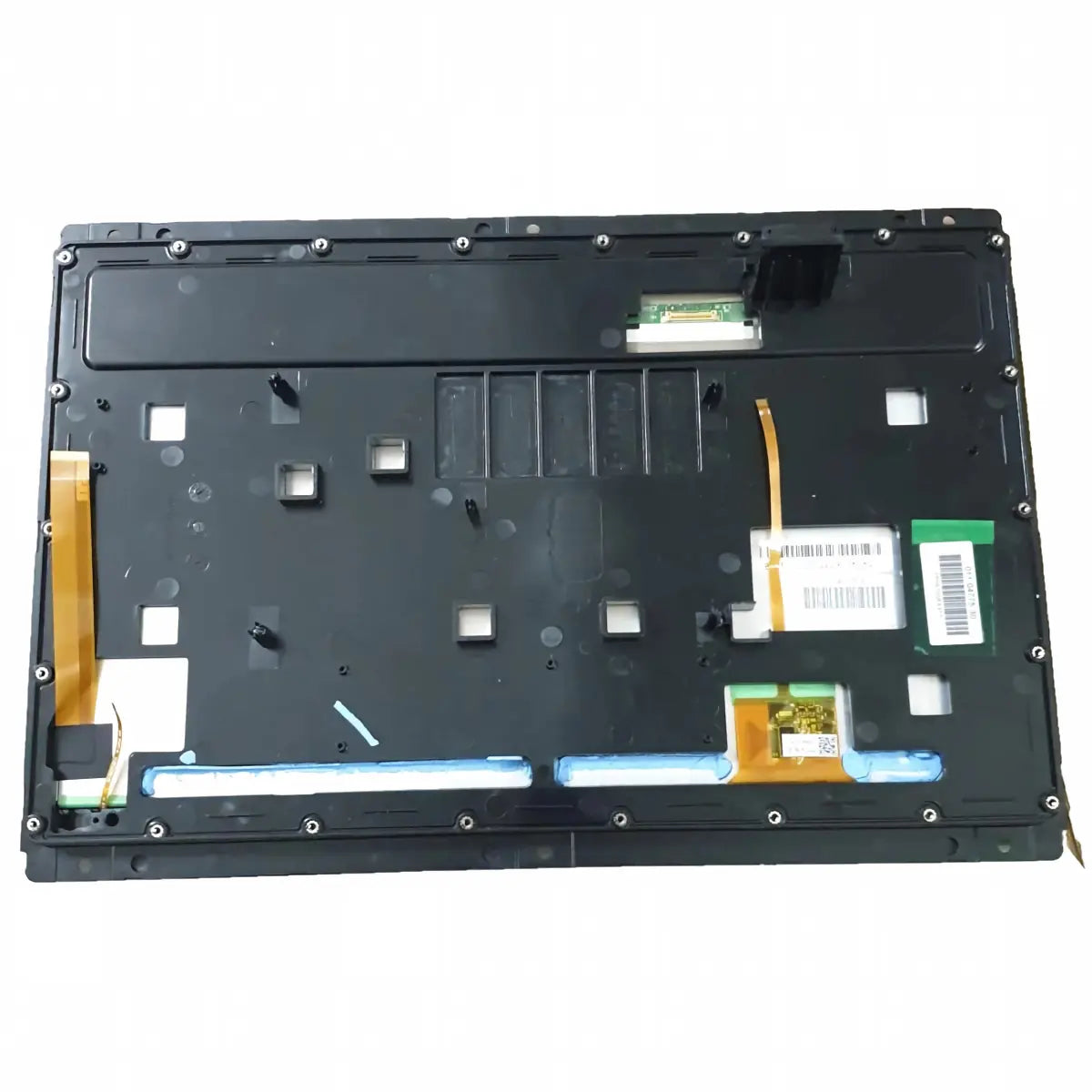

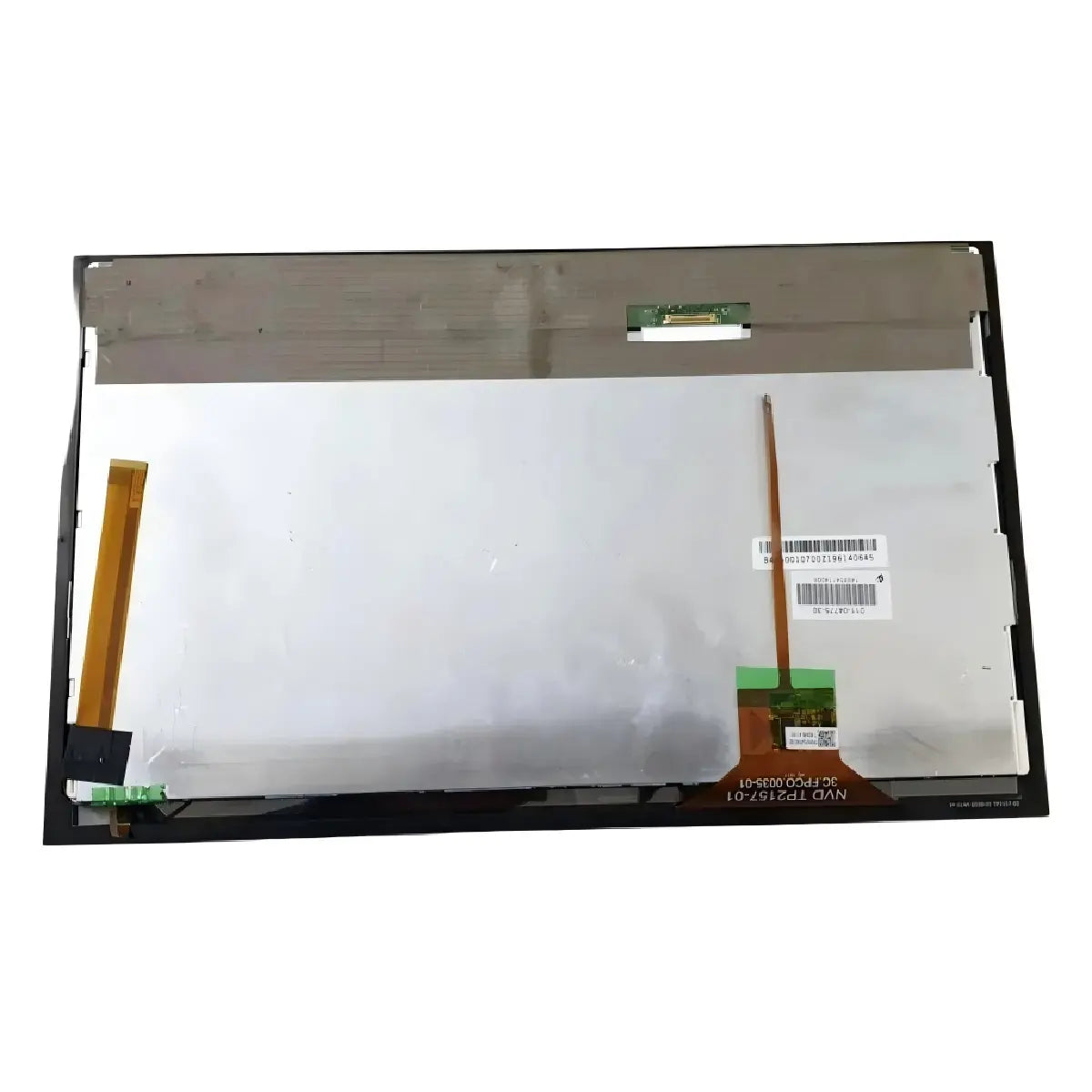

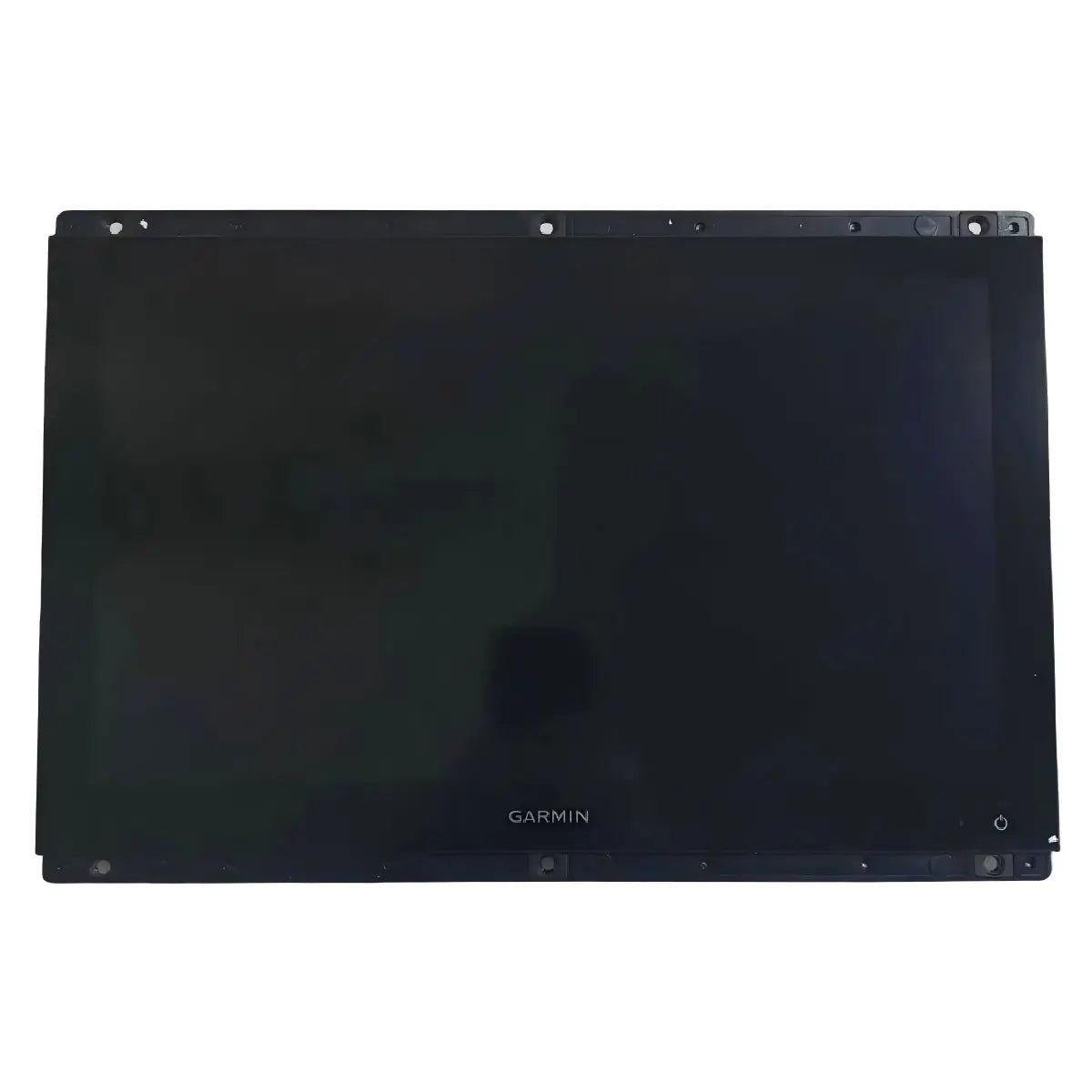

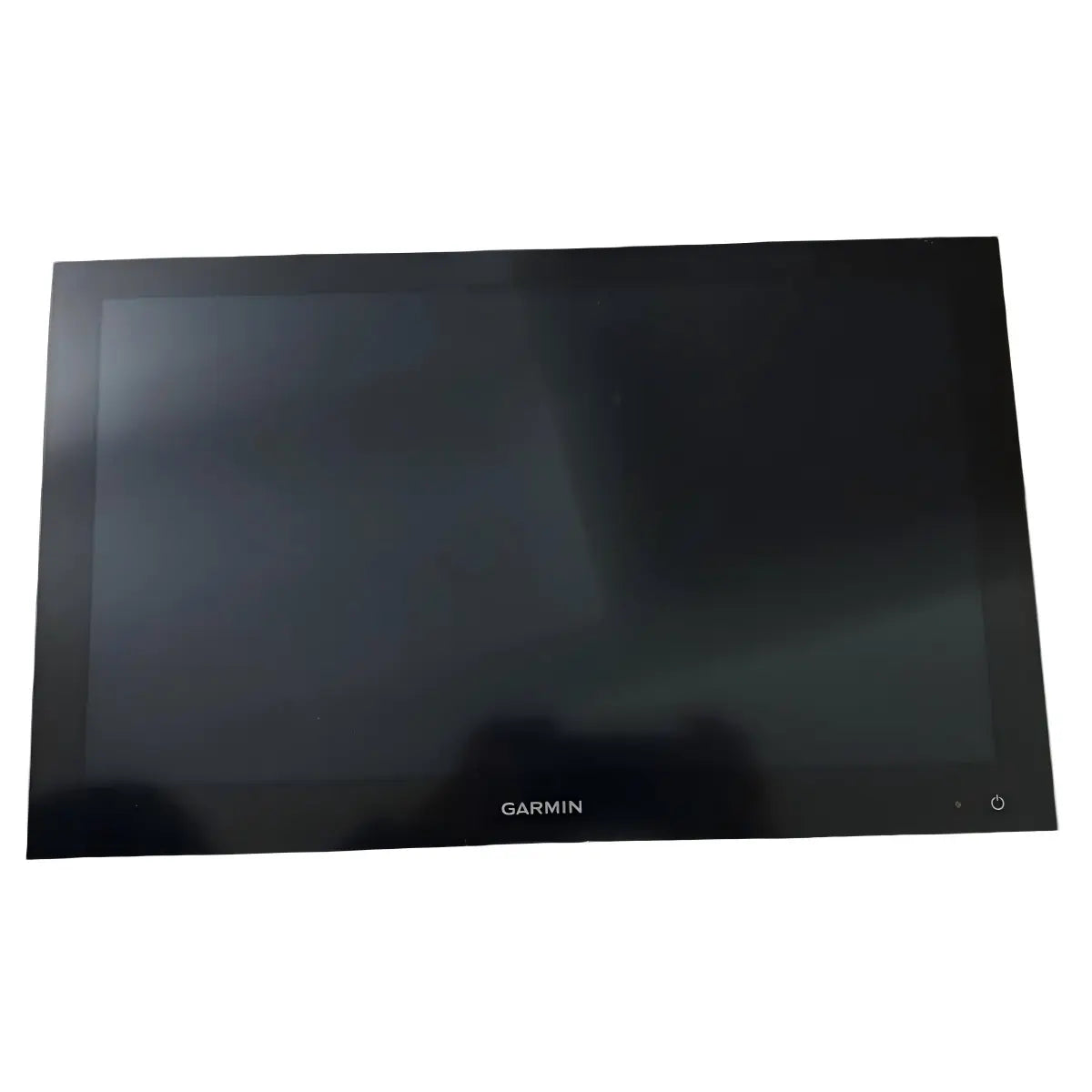

This is a replacement LCD display with integrated touchscreen for the Garmin GPSMAP 8416xsv marine chartplotter/sonar combo unit. It is intended to replace an original display that is cracked, has an unresponsive touch panel, shows dead pixels, or displays visual defects such as lines, discoloration, or no image.
Brand: Garmin
Product family: GPSMAP
Exact model: 8416xsv
Device type: Marine chartplotter / sonar combo
Part type: LCD display with touchscreen digitizer
Repair scenario: Cracked screen, unresponsive touch, dead pixels, no display output
Compatibility
Compatible:
- Garmin GPSMAP 8416xsv
Not confirmed:
- Other GPSMAP 8000-series units (8410xsv, 8612xsv, 8616xsv, etc.) — these use different screen sizes and are not assumed compatible.
- Garmin GPSMAP 8416 (non-xsv, if such variant exists) — do not assume interchangeability without confirming against the original part.
Not compatible:
- Any non-GPSMAP Garmin device.
Common Replacement Scenarios
- Cracked or shattered outer glass/touch panel
- Touchscreen unresponsive or registering incorrect touches
- Dead pixels or discolored sections of the display
- Display shows no image despite the unit powering on
- Physical impact damage common on helm-mounted marine units exposed to spray, vibration, and sun exposure
Key Features
- Direct-fit replacement LCD + touchscreen assembly for GPSMAP 8416xsv
- 15.6" diagonal Full HD IPS touchscreen display
- Designed to restore full display clarity and touch responsiveness
Specifications
| Spec | Value |
|---|---|
| Brand | Garmin |
| Compatible Model | GPSMAP 8416xsv |
| Part Type | LCD Display + Touchscreen |
| Screen Size | 15.6" diagonal |
| Resolution | 1920 x 1080 (Full HD) |
| Display Type | IPS touchscreen |
| Original Unit Model No. | 010-02093-02 |
Installation Notes
Replacing this component typically involves device disassembly, handling of a flex cable/ribbon connector, and re-sealing to maintain waterproof integrity, since the original unit is rated IPX7. Given the large display size and precision IPS panel, professional installation is strongly recommended.
Buying Checklist
- Confirm your unit is the 8416xsv specifically, not another GPSMAP 8000-series model.
- Compare the connector and cable layout of your original damaged part before ordering.
- Confirm with the seller whether waterproof sealing is restored or needs additional sealant during installation.
FAQ
Q: Is this compatible with other GPSMAP 8000-series units (8610xsv, 8616xsv, etc.)?
A: Not confirmed. Different models in the series use different screen sizes, so compatibility should not be assumed.
Q: Does installation require professional repair skills?
A: Professional installation is strongly recommended due to the large IPS panel, flex cable handling, and the need to maintain the unit's IPX7 waterproof rating.
Q: What should I check before ordering?
A: Confirm your exact model is GPSMAP 8416xsv and compare the connector/cable configuration against your original part.
Package Include
- Repair parts are shown in the picture.
Product Inspection
- Display Screen Check
- Cable Connection Check
- Frame Waterproof Test
- Contact Oxidation Inspection
