Product Overview

This is a genuine OEM pull LCD touch screen display, removed from an original Garmin zūmo 590LM or 595LM unit. It is a screen-only part — it does not include the outer frame or adhesive. It is intended for riders replacing a cracked, dim, unresponsive, or otherwise damaged display on their zūmo 590-series unit.

Compatibility

Compatible:

• Garmin zūmo 590LM
• Garmin zūmo 595LM

These four models share the same 5" capacitive touchscreen display (panel reference AA050MJ02, per multiple independent parts suppliers), based on consistent specifications across manufacturer manuals and retailer listings.

Not confirmed:

• Garmin zūmo 660 / 660LM / 665 / 665LM (a 4.3" display, different size and generation — not interchangeable)
• Garmin zūmo 396 LMT-S (a different, later hardware generation, despite a similarly sized display)
• Garmin zūmo XT / XT2 (newer product line with a different housing and display design)

Confirm your exact model before ordering. The zūmo 590/595 series is a distinct hardware generation from the smaller 4.3" zūmo 660-series and the newer XT-series.

3. Common Replacement Scenarios

This part is typically needed when the original display shows:

• Cracked or shattered glass
• Unresponsive or partially unresponsive touchscreen
• A screen that appears noticeably dimmer than expected compared to other Garmin devices
• Dead pixels or display artifacts
• No image / black screen despite the unit powering on

4. Key Features

• Genuine OEM pull — sourced from an original zūmo 590/595-series unit, not aftermarket
• Combined LCD panel and capacitive touch digitizer layer
• Screen only — does not include outer frame/bezel
• Does not include adhesive; adhesive should be sourced separately for reassembly
• Matches original display specification: 5" diagonal, 800 x 480 resolution, dual-orientation capacitive touchscreen

5. Specifications

Installation Notes

Replacing this component involves opening the IPX7-rated waterproof housing and disconnecting the internal flex/ribbon cable that links the screen to the mainboard. Since this screen does not include a frame or adhesive, reassembly requires reusing your original frame and sourcing adhesive separately to preserve the housing's water resistance. This repair involves delicate flex connectors and precise reassembly, so professional installation or prior repair experience is recommended.

What Is Included

• 1x Garmin zūmo 590LM/595LM LCD touch screen display (OEM pull)
• Frame/bezel: not included
• Adhesive: not included

Buying Checklist

• Confirm your device is one of: zūmo 590LM, 595LM
• Note that this listing is screen-only — reuse your original frame and source adhesive separately
• Compare the connector position and flex cable orientation with your original screen before ordering
• Confirm whether professional installation is required for your comfort level
• Take care to preserve weatherproof sealing during reassembly, given the device's IPX7 rating

Package Include

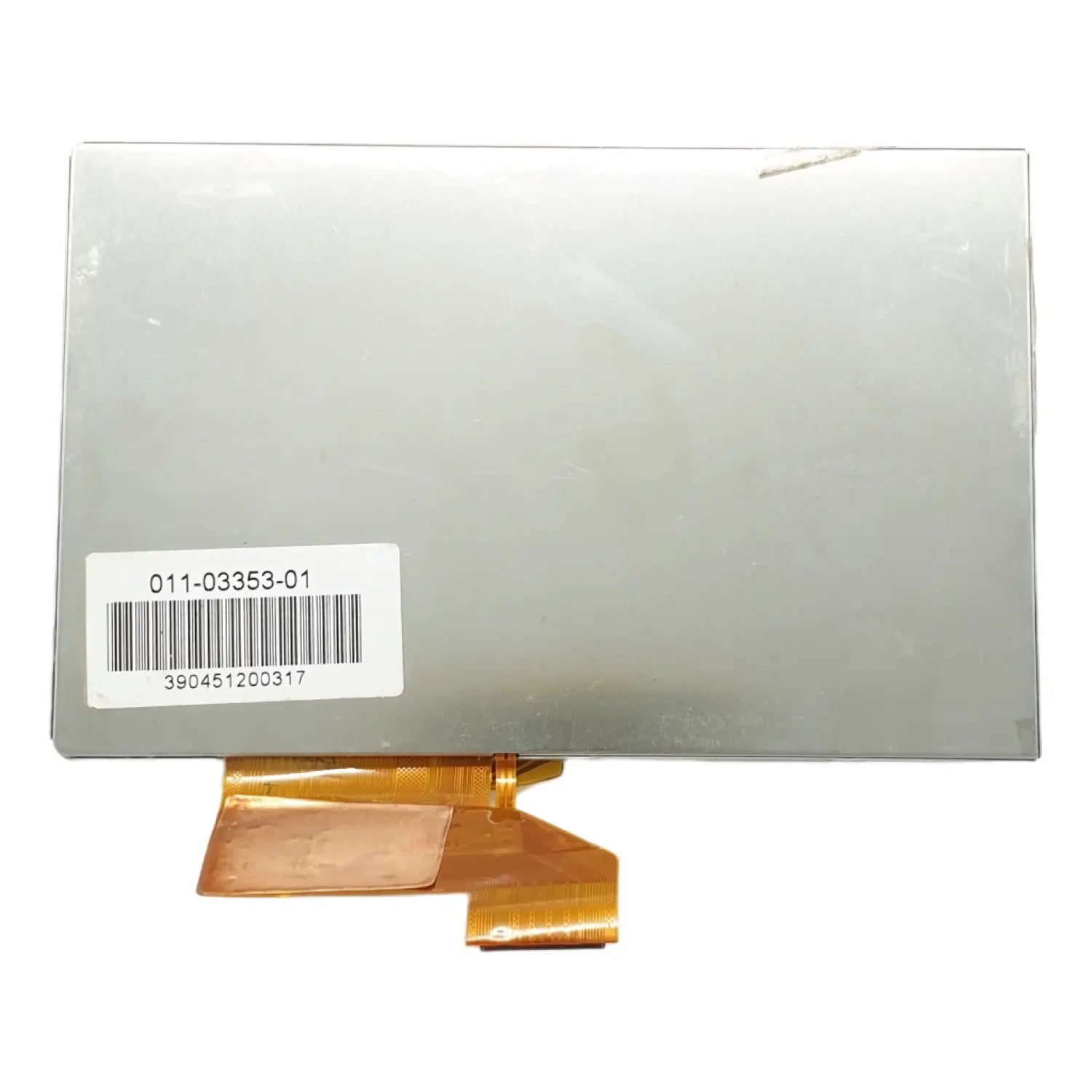

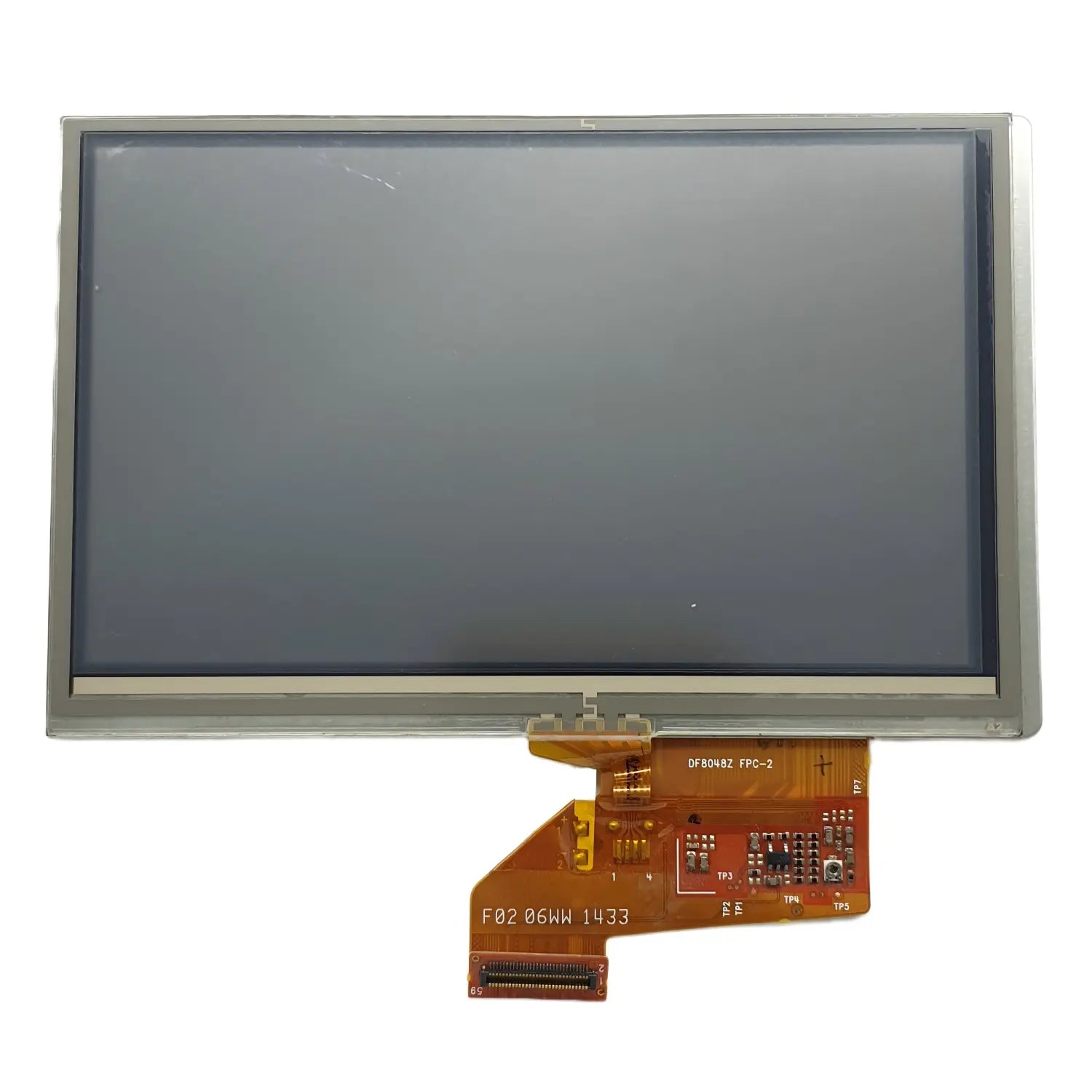

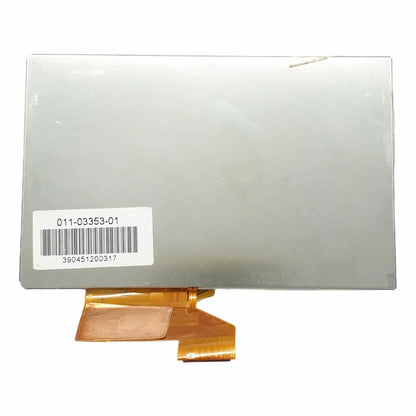

• Repair parts are shown in the picture.

Product Inspection

• Display Screen Check
• Cable Connection Check
• Frame Waterproof Test
• Contact Oxidation Inspection
